2011 New Design Cotton/textile/yarn waste recycle machine
|Place of Origin:Shandong China (Mainland)||Brand Name:rongda||Model Number:GM||colour:white or any colour|

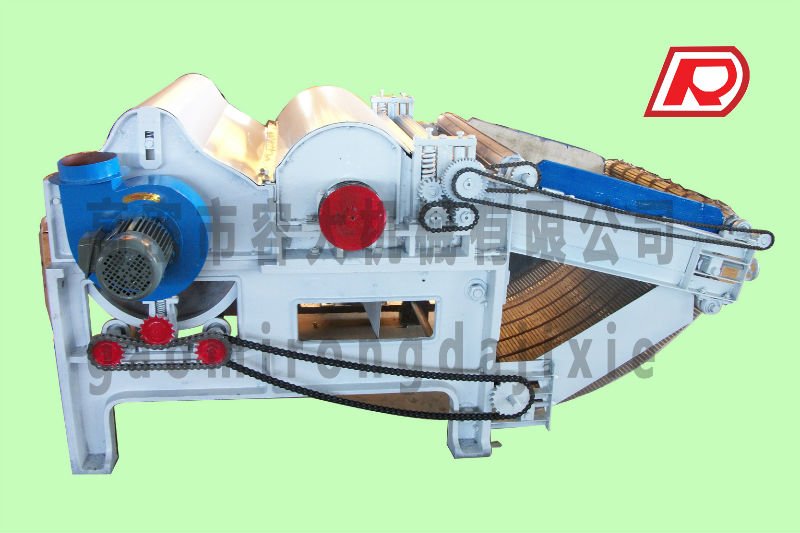

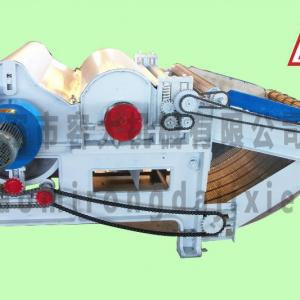

Cotton recycle machine
Scope of application:
It's mainly used to sort out and reclaim the raw material or offcuts from industries producing cloth,cotton spinning, wool spinning, fabrics, polyester etc
- The new type of rack construction is scientific, sound and safe to use. It has reliable functions, stable performance and simple operating methods.
- Great output, sound effect of teaselling and cleaning up,low consume,environmental protection little noise.
- The application of bevel wheel decelerating machine makes strong adaptability to long-time processing without heat-generation and a long service life.
- Use our company patented product,automatic feeding device,to reduce labor intensity enormously without manual work to clean up repeatedly.
- Bran-now rack design collocation to process the raw material gradually and reduce the damage.
- Chain roller of special construction and arched feed plate ensure a long service life.
- New type of chian wheel drive replaces the old connecting plate drive and result in less wearing parts and low failure rate.
- The clearance is easy to adjust, and easy to repair.
- Multiple types from single roller to six-roller can be freely combined. Decisions could be made according to different raw materials.
1.Textile Waste Recycling Machine
2.Recycling waste cotton efficiently
4.Loosen the lint cotton
textile Waste Recycling Machine,cotton waste recycling machine
fabric waste,yarn waste recycling machine.
This machine makes use of the mechanical centrifugal force generated by high speed rotation of the thorn roller to eliminate the impurities contains in the cotton ,at the same time loosen the lint cotton, then presses it in to pieces for use. It can remove the dust .This machine is mainly applied to process all grades of lint cotton, old quilt, short fluff, broken seed cotton, waste yarn, cloth pieces, linen etc.
Main Technical parameter:
1) Output: 100- 120kg/h
2) Diameter of thorn roller: Ø250 mm
3) The speed of rotating of thorn roller: the first is 1900round/min, the second, the third, the forth, the fifth and the sixth is 2000round/min
4) Fan: 2800r/m equipped with 1.1kw/motor
5) Motor: the first Y132M4,7.5KW one set,the second, the third, the forth the fifth and the sixth Y132S4, 5.5KW
6) Outside dimension (length*width*height): 8050×1720×1160 mm
7) Weight: 3200k
|Packaging Detail:NAKED OR AS YOUR REQUIREMENT|
|Delivery Detail:with in 20 days|
