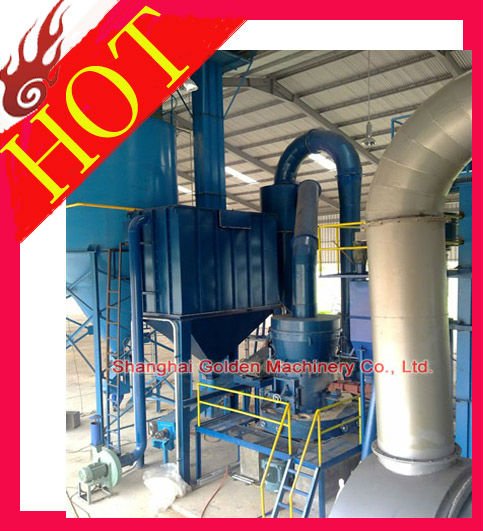

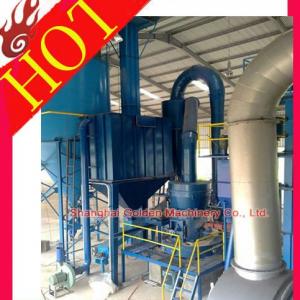

2011 high quality , low price and durable raymond mill ,5t/h

1.High efficiency, 2.simple structure, 3.Low power consumption, 4.Reliable working condition - details see: https://www.machineto.com/2011-high-quality-low-price-and-durable-raymond-mill-5t-h-10313995

Condition:New	Type:cone mill,small mill	Capacity(t/h):1.0-3.0	Place of Origin:Shanghai China (Mainland)
Brand Name:golden mill	Model Number:GDM-260	Rollers No(Pcs):3	Rollers Size(mm):260*150
Ring Size(mm):780*150	Max feed Size(mm):15	Finished Size(mm):0.613-0.033	Mainframe Power(kw):18.5
Overall dimensions(LxWxH):430035005100	color:alternate	quality:high

Working principle of raymond mill and limestone raymond mill and limestone raymond mill and limestone raymond mill and limestone raymond mill

First the materials are crushed by the jaw crusher,then the crushed materials are transferred to a hopper by the elevator ,fed uniformly.quantltatively and continously by the vibration feeder to the grinding chamber of the main frame for grinding.the grinded particles are brought up by the air current of the blower into the classifier for classification.the particles with the required fineness are brought up by the air current through the pipe into a collector for separation and collection,the finished particles are discharged from a pipe outlet,Because of some moisture contained in the materials to be grinded,the heat resulting from grinding leads to the vaporized air which changes the airflow volume,Moreover,the outside air inhaled from the narrow gaps of the piping connections can increase the volume of air current.Therefor,it is necessary to adjust redundant air pipe between the blower and the main unit for keeping the balance of the air current.Then the redundant air is quided into a cloth bag of a dust cleaner to collect the fine power in the air,Finally, the redundant air is discharged after purfication.

Features and benefites of raymond mill and limestone raymond milland limestone raymond mill and limestone raymond mill and limestone raymond mill

In the raymond mill room,the rollers hanged on the roller lifting frame,which is fixed with the main sheft and the scraper knife.the pressure spring press on the outer of the cantilever by tension rod,with the corss arm sheft as the supporting point.let roller tightly press on the inner surface of the ring.when the motor moved with equipment,the scraper knife on the scraper frame moved with the roller at the same time.as the roller moved on the inner sphere surface and moved itself.analyzer let the analyzer runner rotated by motor equipments,and the power fineness depend on the speed adjustment of the analyzer.

Applicability of raymond mill and limestone raymond mill and limestone raymond mill and limestone raymond mill and limestone raymond mill

Golden raymond mill is mainly applied to the processing of mineral products in industries of metallurgy, construction, chemistry, and mining etc. The raymond mill can produce powder from non-flammable and non-explosive mineral materials with Mohs hardness below 10 and humidity below 8%, such as barite, limestone, quartz, calcite, granite, porcelain clay, basalt, gypsum, foundry sand,fine sand etc. The final size of the raymond mill is between 10—3000 mesh. Fully considered the needs of desulfurization, Golden raymond mill could perfectly work with desulfurization equipments to increase the efficiency of desulfurization. So Golden raymond mill are your best choice .

.Shanghai Golden machine service commitment:

Pre-sale service of raymond mill:

We send experienced engineers to your country ,who selects the site of the project and make the process design according to your project specific conditions and special requirements. then design and manufacture the best machines for your project , and make sure the machines meets your project requirements to the maximum and meets the upgrade space of production increasement in the future,

The sale of services:

Accompany you to complete the acceptance of the equipment, and help draw up specific construction schemes and detailed process

After-sales service of raymond mill:

The company send the experienced engineer to on-site guidance equipment installation, commissioning and train

professional technical personnels for you.
