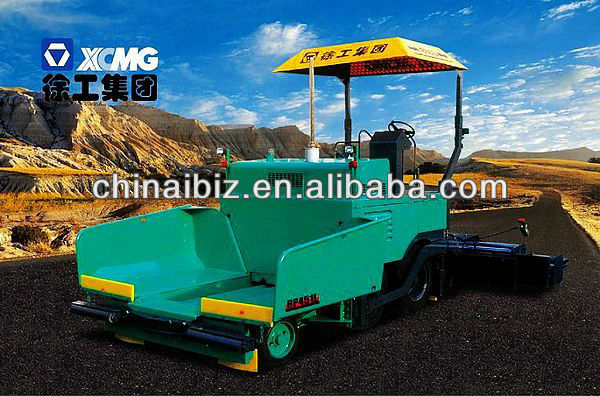

XCMG small road paver RP451L 4.5m Asphalt concrete paver
XCMG small road paver RP451L 4.5m Asphalt concrete paver, Basic paving width:2m, Max. paving width:4.5m, Engine power:55kw - details see: https://www.machineto.com/xcmg-small-road-paver-rp451l-4-5m-asphalt-concrete-paver-10118200
| Condition:New | Production Capacity:240t/h | Power(W):55kw | Max. Paving Thickness:150mm |
| Paving Width:4.5m | Place of Origin:Jiangsu China (Mainland) | Brand Name:XCMG small road paver | Model Number:RP451L small road paver |
| Dimension(L*W*H):5690*2070*3590mm | Weight:10.5t | Certification:ISO90001-2008 | Warranty:1 year |
| After-sales Service Provided:Engineers available to service machinery overseas |
XCMG small road paver RP451L 4.5m Asphalt concrete paver
Basic paving width:2m
Max. paving width:4.5m
Engine power:55kw
| Items | Unit | Parameters |
|---|---|---|
| Basic paving width | m | 2 |
| Max. paving width | m | 4.5 |
| Max. paving thickness | mm | 150 |
| Paving speed | m/min | 0~13 |
| Travel speed | km/h | 0~13 |
| Theoretical Productivity | t/h | 240 |
| Hopper Capacity | t | 12 |
| Gradeability | % | 20 |
| Pavement evenness | mm/3m | 3 |
| Transverse levelling accuracy | % | ±0.03 |
| Centre crown ratio | % | 0~+3 |
| Engine model | 4JR3G1 | |
| Engine power | kw | 55 |
| Engine speed | r/min | 2200 |
| Fuel tank capacity | L | 130 |
| Machine weight | t | 10.5 |
| Dimension | mm | 5690X2070X3590 |
| Auger speed | r/min | 0~73 |
| Conveyor speed | m/min | 0~30 |
| Vibration frequency | Hz | 3~42 |
| Screed heating | Gas heating | |
| Auger and conveyor control | Automatic Control by Ultrasonic Sensors | |
| Automatic levelling control | Simulation Control Simulation control |
| Packaging Detail:NUDE |
| Delivery Detail:IN 7 DAYS |
