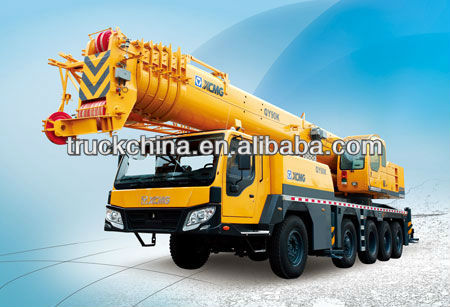

XCMG 90t Truck Mounted Crane Pickup Truck Crane Mobile Truck Crane

Name: XCMG 90t Truck Mounted Crane Pickup Truck Crane Mobile Truck Crane
SKU: 10104538

Model QY90k Truck Cranes Shandong,China(Mainland) Ref 10104538

Price on request

Pricing is provided on request — use the quote form below.

Port: China Port
Minimum Order Quantity: 1 Set/Sets
Supply Ability: 3000 Set/Sets per Month
Payment Terms: L/C,T/T

Something wrong with this listing? Report it

Key features

XCMG 90ton Truck Crane·9years Experience·Best After-sales Service·The World's Fifth Engineering Machinery·ISO CCC BV TUV SGS

Specifications

Feature	Truck Crane	Condition	New
Application	Powerful, cross-country ability	Rated Loading Capacity	90t
Rated Lifting Moment	2303kN.M	Max. Lifting Load	90t
Max. Lifting Height	59.5m	Span	7.3m
Place of Origin	Jiangsu China (Mainland)	Model Number	QY90k
Certification	ISO CE	Warranty	1year
After-sales Service Provided	Engineers available to service machinery overseas	Total weight in travel	43000kg
Front axle load	17000kg	Rear axle load	26000kg
Engine model	WD615.338	Engine rated power	276/2200(r/min)
Min. turning diameter	24m	Max. grade ability	40%
Max. lifting torque	5253kN.m	Longitudinal outrigger span	5.91m
Max. swing speed	≥2.0r/min	Details	XCMG 90ton Truck Crane · 9years Experience · Best After-sales Service · The World's Fifth Engineering Machinery · ISO CCC BV TUV SGS

Packaging & delivery

Packaging Detail	Nude Packing/Ro-Ro/bulk cargo vessel
Delivery Detail	7days after receiving 30% deposit by T/T

Product description

•The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
•The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
•Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
•The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.

Dimension	Unit	QY90K
Overall length	mm	13930
Overall width	mm	2800
Overall height	mm	3575
Weight
Total weight in travel	kg	43000(without 1t vice counterweight)
Front axle load	kg	17000
Rear axle load	kg	26000
Power
Engine model		WD615.338(domestic III)
Engine rated power	kW/(r/min)	276/2200
Engine rated torque	N.m/(r/min)	1500/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	24
Min. ground clearance	mm	327
Approach angle	°	19
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	45
Main performance
Max. rated total lifting capacity	t	90
Min. rated working radius	m	3000
Turning radius at turntable tail	m	3.55
Max. lifting torque	kN.m	2303
Base boom	m	11.6
Fully extended boom	m	44.5
Fully extended boom+ jib	m	59.5
Longitudinal outrigger span	m	6.1
Lateral outrigger span	m	7.3
Working speed
Boom luffing time	s	60
Boom full extension time	s	≤150
Max. swing speed	r/min	≥2.0
Max. speed of main winch (single rope) (no load)	m/min	≥130
Max. speed of aux. winch (single rope) (no load)	m/min	≥108
