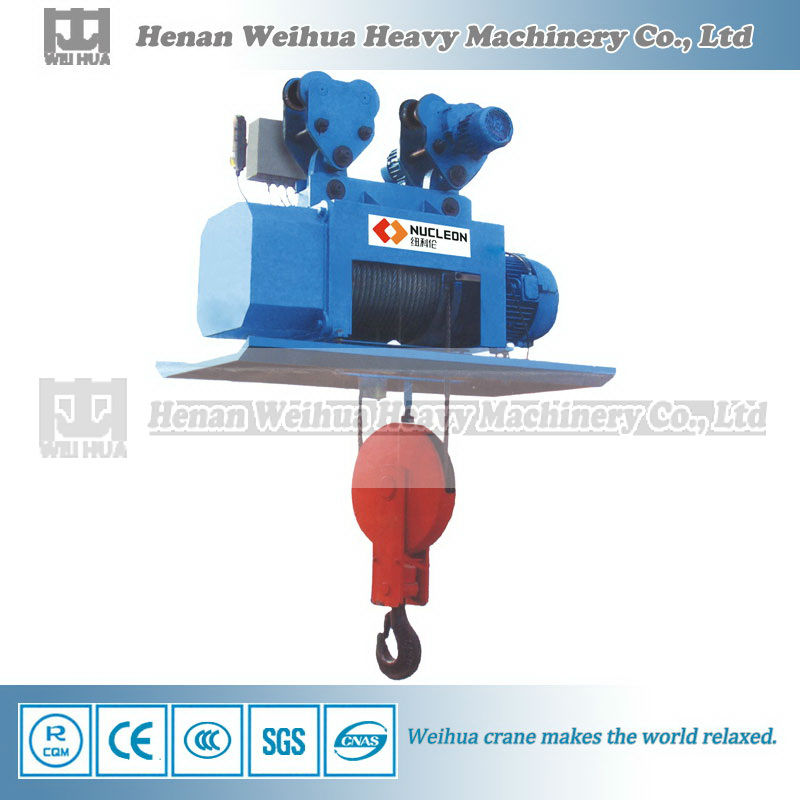

WEIHUA Wire Rope Electric Hoist

Name: WEIHUA Wire Rope Electric Hoist
SKU: 10096719

Model YH Hoists Henan,China(Mainland) Ref 10096719

Price on request

Pricing is provided on request — use the quote form below.

Port: Qingdao
Minimum Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Payment Terms: L/C,T/T

Something wrong with this listing? Report it

Key features

1.Highly durable·2.Offer a longer service life·3.Rank high on cost effectiveness and functioning·4.Excellent performance

Specifications

Condition	New	Place of Origin	Henan China (Mainland)
Model Number	YH	Usage	Mining Hoist
Power Source	Electric,3PHASE AC 380V 50HZ	Sling Type	Wire Rope
Maximum Lifting Weight	10 ton	Maximum Lifting Height	20 meter
Lift Speed	7 m/min	Certification	CQM,CE,3C,CNAS,SGS
Warranty	12 MONTH	After-sales Service Provided	Engineers available to service machinery overseas
mechanical load brake	available	motor brake	available
overload protection	available	Lifting Motor Model	ZD131-4
Travelling motor	ZYD12-4	Working system	FC=50%
Ambient Temperature	-10-60 Centigrade degree	Standard	AQSIQ
Details	1.Highly durable · 2.Offer a longer service life · 3.Rank high on cost effectiveness and functioning · 4.Excellent performance

Packaging & delivery

Packaging Detail	Standard exporting packing.
Delivery Detail	30 days against receiving of advanced payment

Product description

Specification

WEIHUA YH Casting Electric Hoist

WEIHUA Wire Rope Models incorporate

the High Performance Engineering of the

WEIHUA Brand with additional

advantages of wire rope. The WEIHUA

YH models feature: a mechanical load

brake; motor brake; and overload

protection as standard.

Request Info
Product Type: Electric Wire Rope Hoist
Capacity : 2-10Ton
Lift : 9-20 meter
Lifting Speed : 21 FPM
Hoist Model: YH

Additional features and benefits include:

Rated loads from 1/2 to 5 tons, with lifts from 15 ft. to 70 ft. based on models. Standard
push button drop is 4 ft. less than lift.
Voltages - 115/230 (single phase); 230/460, 208, 220/380, 575 (three phase) 60 hertz or
50 hertz. Two-speed motors available (3 to 1 speed ratio).
YH Models are available with 2-part standard; 4-part standard; True Vertical Lift; and Low
Headroom options.
Hoist can be Lug, Plain, Geared, or Motorized Trolley mounted.
Adjustable limit switch regulates upper and lower load travel. Stainless steel and brass
components provide exceptional repeatability and positioning.
Gears are precision machined of alloy steel and run in an oil bath for longer, quieter
operation.
Small Frame Design - Features housings of cast aluminum alloy construction for minimum
weight. Engineered and designed for use with motors up to 1 HP.
Large Frame Design - Features load bearing housings of ductile iron construction for
maximum strength. Non-load bearing housings of cast aluminum alloy for minimum weight.
Engineered and designed for use with higher torque 2 and 3 HP three phase motors.
Machines steel drum precision grooves are machined to a depth 50% of the wire rope
diameter.
VFD Option - Under-the-cover Variable Frequency Drives offer In-field, instant programming
- from infinitely variable (12:1 speed ratio) to any intermediate, predetermined speed range. VFD's
can also be externally mounted to Motorized Trolley Units.
Options - Corrosion resistant stainless steel wire rope available.
Proudly Made by WEIHUA in China.

Specification
Product Type	Electric Wire Rope Hoist
Brand	WEIHUA DMAG
Capacity	3 Ton
Lift	22'
Hoist Model	YH
Lifting Speed	21 FPM
Headroom	27-1/16"
Control Type	1-Speed
Limit Switches	Yes
Load Limiter Included	Yes
Braking System	Mechanical load & multiple disc motor brake
Warranty	12 Month
Voltage	230/460 Volt
Mounting Type	Plain Trolley
Reeving	1
Motor HP and RPM	5 HP
Metric Rated	No
Power Cord	15'
Phase	3
Pendant Drop	18'
Control Station Rating	NEMA 3R
Enclosure Rating	NEMA 3R

FAQ

What model is this machine?: The model number is YH.
Is it new or used?: Condition: New.
What is it used for?: Applications include Mining Hoist.
What power does it require?: Power requirement: Electric,3PHASE AC 380V 50HZ.
What certifications does it have?: Certification: CQM,CE,3C,CNAS,SGS.
What warranty is offered?: Warranty: 12 MONTH.
