waste old cloth garment cutting machine, Output: 1000-1500kg/h, Cutting cloth into 5-16cm, the length can be adjusted - details see: https://www.machineto.com/waste-old-cloth-garment-cutting-machine-10279779

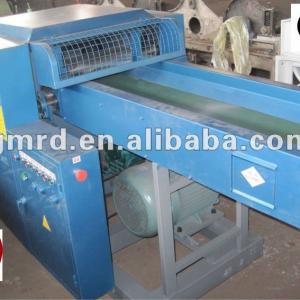

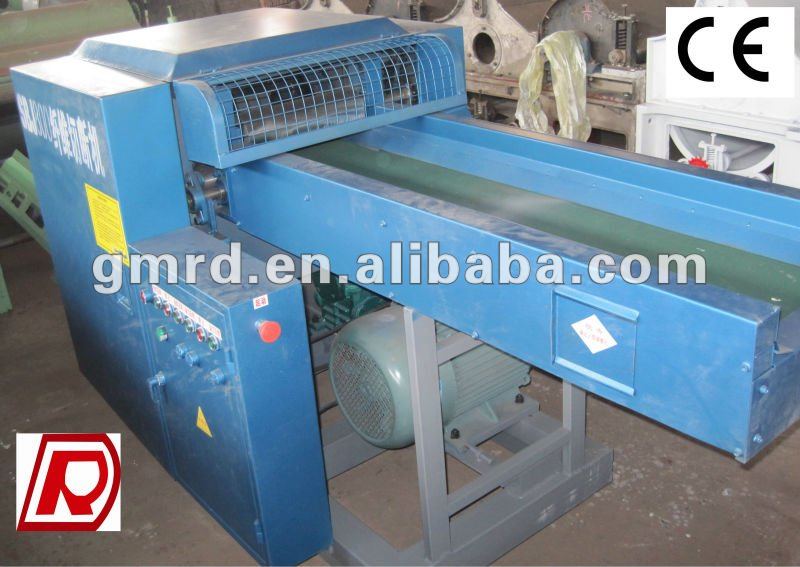

waste old cloth garment cutting machine

1.Simple description of the GM800Cwaste old cloth garment cutting machine

• automatic old cloth cutting machine , old cloth cutter to cut fiber , old cloth , textile waste , textile scrap , old carpet , cotton , glass fiber , leather waste into small pieces to recycle or go for rag tearing machine .
• Blade cutter , with feeding and outputing belt
• the cut size can be adjusted from 5-180mm

2.Cutting Machine

1. Uses the cutting between the blade roller and fixed blade to cut yarn, fabric etc. into small pieces.

2. Length is adjustable from 5 cm-20 cm .Speed can be adjustable according to customers’ special requirement.

3. It can meet the requirement of best quality, high output, low cost and also has a feature of reasonable structure, easy operation and the safe production and so on.

3.Main parater ofthe GM800Cwaste old cloth garment cutting machine

1 Output: 1000kg/h

2 The blade roller Dia: Ø320 mm

3 Speed of the roller: 230r/m

4 Motor : blade roller Y132S8, 5.5 KW 1 set

Feeding and discharging Y90 L4, 1.5KW 1Set

5 Chief bearing: 6216E 4 blade roller

6 Conveyer belt: 380×2100×4 1 feeding part

380×2750×4 1 discharging

7 Outside dimension: L×W×H 2580×960×1200 mm

8 Weight ≈1200kg
