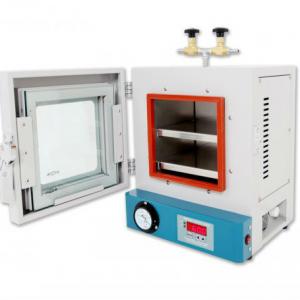

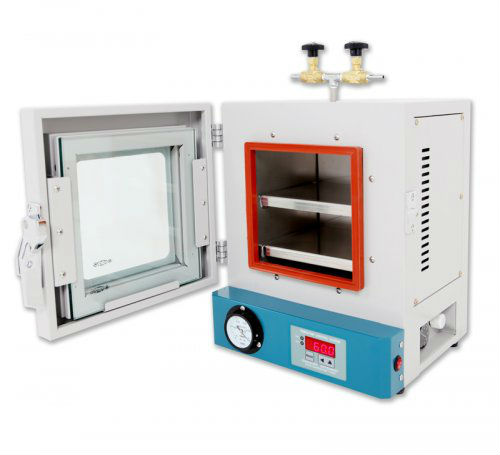

Vacuum Oven - Samheung Energy(Korea) - details see: https://www.machineto.com/vacuum-oven-10297686

Model

SH-VDO8

SH-VDO30

SH-VDO70

SH-VDO125

Temp Range

Ambient +5 °C to 250 °C

Time range

00.00 to 99HR 59MIN (MIN SEC) Selectable Digital Counter Timer

Vacuum Resistance

0 to 760 mmHg

Temp & Time controller

Microprocess Digital P I D Membrain touch controller

Temp Accuracy & Stability

±0.1 °C

Heater capa

300W

1000W

1500W

1500W

Dimension Internal (W x D x H )

200× 200× 200

300 x 300 x 300

400 x 400 x 400

500 x 500 x 500

Dimesion External

320× 320× 420

460 x 440 x 690

560 x 540 x 790

780 x 650 x 730

Capa

8 L

27 L

64 L

125 L

Material internal

Stainless Steel SUS 304 with Polishing Finished

Material External

Steel Plate with Powder Heating Coated

Packing

Seamless Silicon Rubber Packing

view window

Tempered Glass

Shelves

Du-AL 50 Plate 2EA

Safety Device

Automatic reset function incoming power cut

Buzzer on When Set Time Arrived

Power

220V , 1Φ, 1.5A

220V , 1Φ, 4.5A

220V , 1Φ, 7.0A

220V , 1Φ, 7.0A

Features :

* The heat delivery in a vacuum state is made by conductive heat. Accordingly

occurring problem is that it is difficult to maintain the temperature distribution in a

chamber uniformly. To solve this problem, SH-VDO8 is a Full Heater Type which

can heat three sides of chamber at the same time.

* Control panel is a Membrane Touch Type and has compact design. Therefore

outer appearance is excellent.

* Utilities needed for test, for example, Digital Counter Timer, Over Temp Protection

Device are merged into one circuit in Temp and Timer Controller

in order to achieve user-oriented purpose.

* View window made by Tempered Glass is installed in front of Door in order to

observe sample condition easily during the test.

Option :

Vacuum Pump

Cold trap Bath
