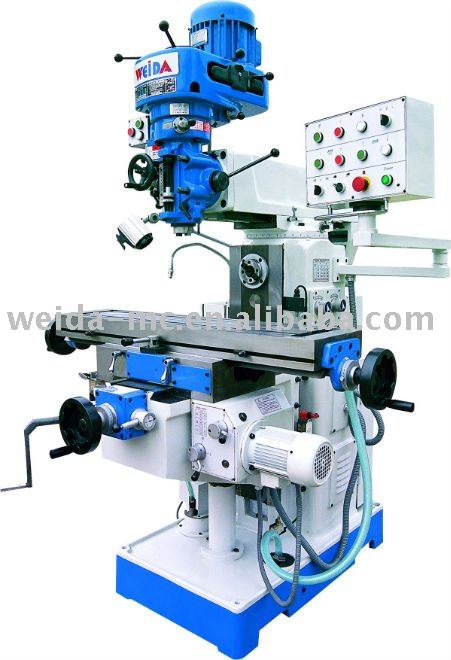

Universal radial milling machine X6328B

1.with CE and ISO9001:2008, 2.Taiwan milling head, 3.Headstock swivels +/- 45, 4.rectangular table guideways with high stabilit - details see: https://www.machineto.com/universal-radial-milling-machine-x6328b-10125566

Condition:New	CNC or Not:Normal	Place of Origin:Shandong China (Mainland)	Brand Name:WEIDA
Model Number:X6328B	Processing:Milling Machine	Usage:General	Precision:Precision
Processing Types:Metal	Automatic Grade:Automatic	Workpiece and Weight:Large Machine Tool

contact supplier for Universal radial milling machine X6328B

	unit	X6328B
TABLE :
Table size	mm	1120X260
T slot	no	3
Size ( Width )	mm	14
Centre distance	mm	63
Max. load of Table	kg	200
machining range :
table Longitudinal travel(manual/auto)	mm	600
table Cross travel (manual/auto)	mm	270
table Vertical travel(manual/auto)	mm	360
MAIN SPINDLE :
Spindle taper		ISO40
spindle speed /step -- Vertical	rpm	115-1750/8steps
--Horizontal	rpm	38-1310/12steps
Max.drilling dia.	mm	30
Max.end milling width	mm	100
Max. vertical milling Dia.	mm	25
Max.tapping dia.	mm	M16
quill travel	mm	127
swivel angle of headstock	degree	±45º
vertical spindle axis to column surface	mm	200-760
vertical spindle nose to table surface	mm	90-430
horizontal spindle axis to table surface	mm	0-340
horizontal spindle axis to arm bottom	mm	175
arm travel	mm	500
FEEDS :
Longitudinal/cross feed	mm / min	24-402/9steps
Vertical/step	mm/min	422/1step
Longitudinal/cross rapid speed	mm / min	402
Rapid Traverse vertical	mm/min	422
automatic spindle feed		0.45/0.86/125
POWER :
main motor	kW	2.2(V/H)
(X/Y/Z) feed motor	kW	0.37(X/Y),0.75(Z)
coolant motor	kW	0.04
others
package dimension	cm	160X152X222 1pc/case
		220X152X222 2pcs/case
overall dimension	cm	171X148X210
N/W,G/W	kg	1350/1500
