Touch screen socks sewing machine
Price on request
Pricing is provided on request — use the quote form below.
- Port
- NingBo
- Minimum Order Quantity
- 1 Set/Sets
- Supply Ability
- 130 Set/Sets per Month
- Payment Terms
- L/C,T/T
Price on request
Pricing is provided on request — use the quote form below.
Something wrong with this listing? Report it
1.automatic control head·2.Five motor control·3.Socks from 64 to 280 needles·4.900 pairs/hour·5.Standard spare part
| Place of Origin | Zhejiang China (Mainland) | Model Number | 656 |
|---|---|---|---|
| Net weight | 71 kg | Working way | straight |
| Gross weight | 116 kg | Motor number | five |
| Color | cream | Packing size | 100*50*131 cm |
| Dimension | 87*40*116 cm | Details | 1.automatic control head · 2.Five motor control · 3.Socks from 64 to 280 needles · 4.900 pairs/hour · 5.Standard spare part |
| Packaging Detail | Standards Wooden Case |
|---|---|
| Delivery Detail | 10 ~ 20 days |
| Touch screen Socks Sewing machine ROSSO 656 specifications: |
| 1. can be stepless up to 4900 r / min, yield up to 900 Pairs / hour. |
| 2. self-lubricating head device, longer service life; work, low noise, and create a good working environment. |
| 3. the automatic trimming device, effectively control the length of uniform socks, cut sutures, unity. |
| 4. can be flipped into the feeding device, yarn is convenient; built-in automatic lifting device, the more smooth delivery of socks. |
| 5. feed fiber optic sensor time delay function, the speed can be set according to different delay length, effective control of the suture in the sewing of a waste of time. |
| 6. dual-channel head sewn to make socks more solid and smooth. |
| 7. Rated voltage: 220V Frequency: 50 Hz |
| 8. Power: 570W (fan 370W, machine 200W) |
| ROSSO 656 special characteristics: |
| 1, using the touch-type touch screen computer control system makes the operation more convenient |
| 2, a separate motor control system can be adjusted by the computer when the density and speed of sewing, more effective control of the sewing socks when the body lengthen or shorten the phenomenon. |
Product Characteristics:
1.Low noise :70db,equal to the noise of the general office.
2.Reversible pre-delivery devices for 180 degree has a better quality in stitching effect and convenient to clean yarn.
3.Intelligent counting system, output each work period can be shown.
Machine can be stop automatically when thread broke, reduce the product scrap rate.
4.The system has machine component testing function. User can do motor ,head and sensor test by this function, It’s very convenient to debug and process the fault.
5.Concise error tips to make the fault processing very easy
6.System language can be changed freely between Chinese and English, special language can be customized.
7.Adopting imported materials and core components with its design life as long as 10 years.

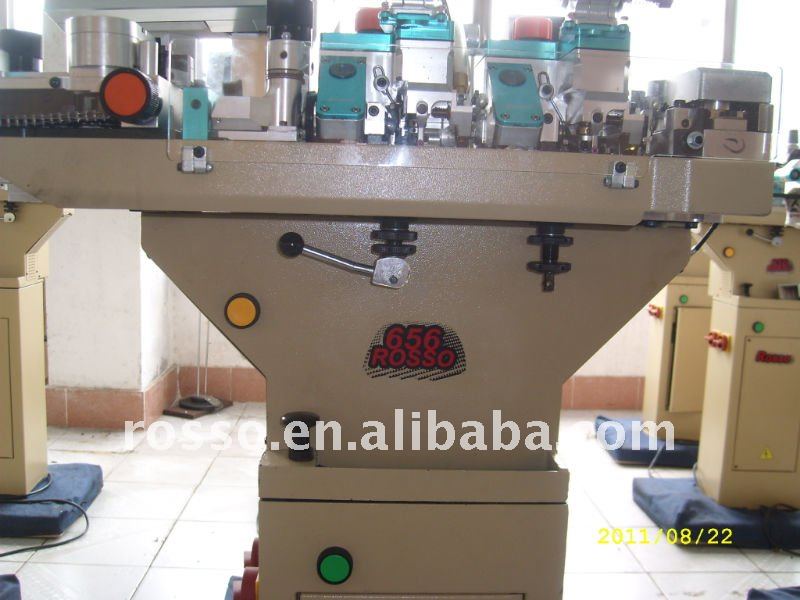

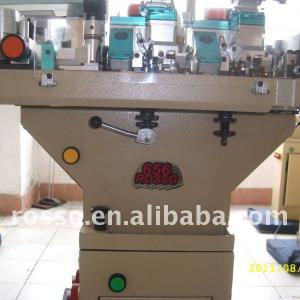

HD Detail Pictures:
