textile cutting machine
Price on request
Pricing is provided on request — use the quote form below.
- Port
- ningbo
- Minimum Order Quantity
- 1 Set/Sets
- Supply Ability
- 200 Set/Sets per Month
- Payment Terms
- L/C,T/T,Western Union
Price on request
Pricing is provided on request — use the quote form below.
Something wrong with this listing? Report it

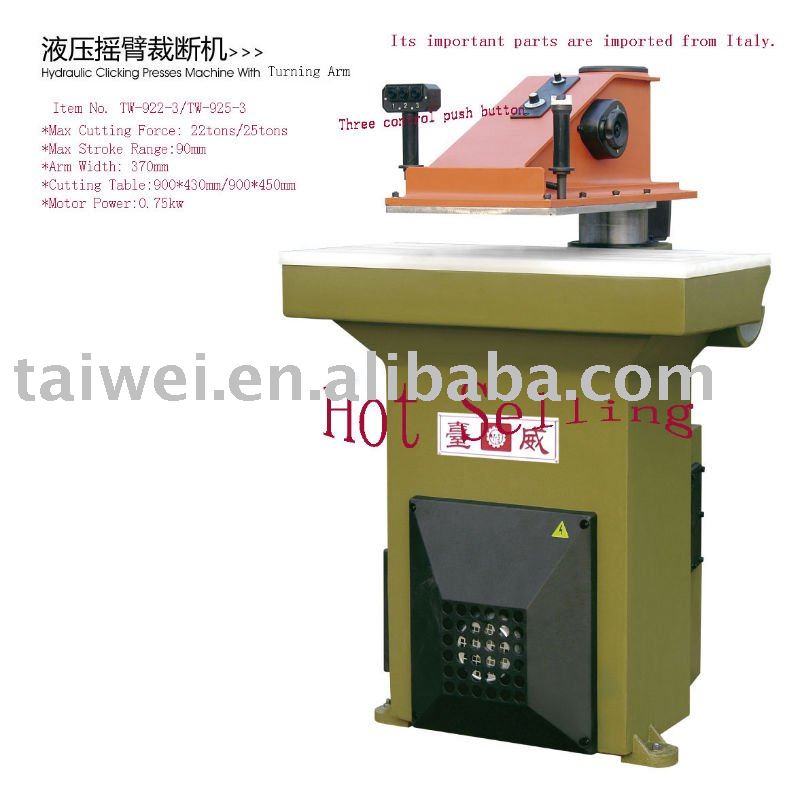

1.Item No.TW-922(3+1)·2.max cutting machine:22T·3.max stroke:90mm·4.cutting table:900*430mm·5.arm width:370mm
| Place of Origin | Zhejiang China (Mainland) | Model Number | TW-922(3+1) |
|---|---|---|---|
| Details | 1.Item No.TW-922(3+1) · 2.max cutting machine:22T · 3.max stroke:90mm · 4.cutting table:900*430mm · 5.arm width:370mm |
| Packaging Detail | PLASTIC FILM OR WOODEN CASE |
|---|---|
| Delivery Detail | 35days |
2. The oil way system specially designed can conveniently adjust the rocker height. Noadjustment is needed after the height of die cutter is changed.
3.High speed and low energy consumption. With only power of 0.75kw. It can output the cutting force of 22T and 25T.
4. To meet the need of frequent replacement of die cutters of different sizes, another type of machine that can timely output three kinds of cutting force is available for selection.
TECHNICAL SPECIFICATION
| Model | TW-922(3+1) | TW-925(3+1) | TW-925L(3+1) |
| Maximum Cutting Force | 216KN(22T) | 245KN(25T) | 245KN(25T) |
| Area of work table(mm) | 900X430 | 900X450 | 900X450 |
| Swing arm width(mm) | 370 | 370 | 500 |
| Cutting travel(mm) | 90 | 90 | 90 |
| Motor power | 0.75KW | 0.75KW | 0.75KW |
| Machine dimensions(mm) | 900X900X1400 | 910X900X1400 | 910X900X1400 |
| Packing size(mm) | 1050X1000X1500 | 1150X1000X1500 | 1150X1000X1500 |
| Net weight (with oil) | 670KG | 820KG | 820KG |
| Gross weight | 760KG | 880KG | 880KG |
