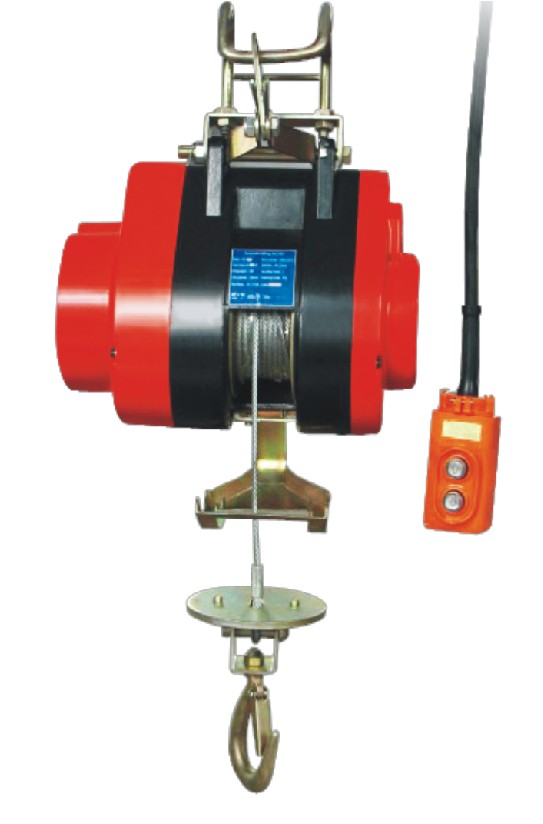

suspending electric hoist

Model HXS-100/150/200/250KGS Hoists Zhejiang,China(Mainland) Ref 10096727

Price on request

Pricing is provided on request — use the quote form below.

Port
shanghai or ningbo
Minimum Order Quantity
50 Piece/Pieces
Supply Ability
2000 Piece/Pieces per Month
Payment Terms
L/C,D/P,T/T

Request a Quote

Product: suspending electric hoist

Attachment optional · PDF, Word, Excel, image · max 10 MB
No file chosen
We usually reply within 12 hours.

Key features

suspending electric hoist With urgent Stop Switch and reinforced breaking switch·with position limitr, protection class: IP54,

Specifications

Place of Origin Zhejiang China (Mainland) Model Number HXS-100/150/200/250KGS
Usage for lifting in warehouse, factories,constructions site, plumbings,etc, Power Source Electric
Sling Type Wire Rope Maximum Lifting Weight 250kgs
Maximum Lifting Height 20m Lift Speed 12-15m/min.
name suspending electric hoist Details suspending electric hoist With urgent Stop Switch and reinforced breaking switch · with position limitr, protection class: IP54,

Packaging & delivery

Packaging Detailunit with color box. size: 425*365*370mm.
Delivery Detail25 days

Product description

suspending electric hoist

MODEL
HXS-100F
HXS-150F
HXS-200F
HXS-250F
Rated volt
(V;50/60Hz)
220
230
240
110
Input power
W
580
780
1050
1200
Rated load
Kg
100
150
200
250
Cable diameter
mm
3.8
3.8
4.2
4.2
Lifting Speed
M/min
15
15
12
12
Lifting Height
m
20
20
20
20

FAQ

What model is this machine?
The model number is HXS-100/150/200/250KGS.
What is it used for?
Applications include for lifting in warehouse, factories,constructions site, plumbings,etc.
What power does it require?
Power requirement: Electric.
