supply leather tanning machinery

Functions, 1,apply for preparing, tanning, neutralizing and dyeing, 2,be used for small liquid experiment, 3,heating system - details see: https://www.machineto.com/supply-leather-tanning-machinery-10265495
Condition:NewAutomatic Grade:AutomaticPlace of Origin:Jiangsu China (Mainland)Brand Name:DCH
Model Number:800*400mmType:STAINLESS STEEL TEST DRUMVoltage:380VPower(W):0.55-0.75KW*2
Dimension(L*W*H):2300*1400*1650mmWeight:anyCertification:CEWarranty:1 YEAR
After-sales Service Provided:Engineers available to service machinery overseasMATERIAL:STAINLESS STEEL
supply leather tanning machinery
contact supplier for supply leather tanning machinery


APPLICATION RANGE

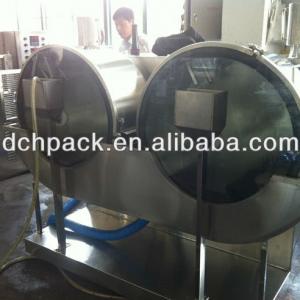

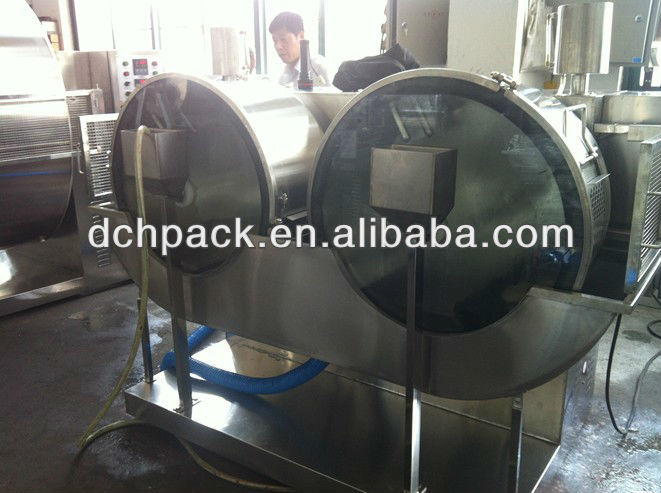

Interlayer heating & circulating stainless steel temperature controlled comparison laboratory drum is essential laboratory equipment in modern leather-making industry, which is composed of two same type of stainless steel drums used for comparison tests of leathers in small batch and varieties at a time, thus achieving the best processing technology. The equipment is suitable for wet operation in preparation, tanning, neutralizing and dyeing processes of leather making.

Main technical parameters

1,The equipment is equipped with the advanced interlayer electric-heating & circulating system. The liquid inside the drum is totally separated with the heating medium in the interlayer of the drum so that the drum can be heated and maintained at a temperature when it is stationary. It is especially suitable for test at low ratio of liquids. All test date are accurate. The inside of the drum can be cleaned thoroughly so that there will be no any residual liquid and west residue remained. As a result of that, color spot or chromatic difference can be eliminated completely.

2, Speed of the drum is regulated by means of frequency convertor through belts. It has advantages of stable drive and low noise.

3, This equipment is equipped with two driving systems. The speed of each drum can be set up respectively. Either of the drums can be stopped operation.

4, The equipment has the timing functions of controlling total working cycle time, forward & backward rotation duration as well as single direction operation. Each duration can be set up through timer respectively so that the drum can work continuously or interruptedly

5, Equipped with an intelligent temperature controller, automatic heat, constant-temperature hold and temperature control can be achieved accurately.

6 The observation window is made of fully transparent, high-strength & thermostable toughened glass so that process clean.

7, There is cleaning door and dredge through so that wastewater can be discharged into the tough that makes the process clean.

ModelR60-2R80-2R801-2
Drum diameter(mm)600800800
Drum widit(mm)300300400
Effective volume (L)234560
Leather loaded(kg)81115
Drum speed(r/min)

0-30

Motor power(kw)0.55*20.75*20.75*2
Heating power(kw)4.5*2
Temperature range controlled(0C)

Room temperature-80±1

Dimension(mm)2000*1300-16002300*1300*16502300*1400*1650

PICTURES

We are the leather tannery machines manufacture of customer order basis. It will reduce your cost dramatically if you contact with us directly. You No need pay for commission for like foreign trade company. So contact with us by sending e-mail in the following.


supply leather tanning machinery
Packaging Detail:packed by heating shrinkable film or as per your request.
Delivery Detail:15-30 days after getting the deposit
