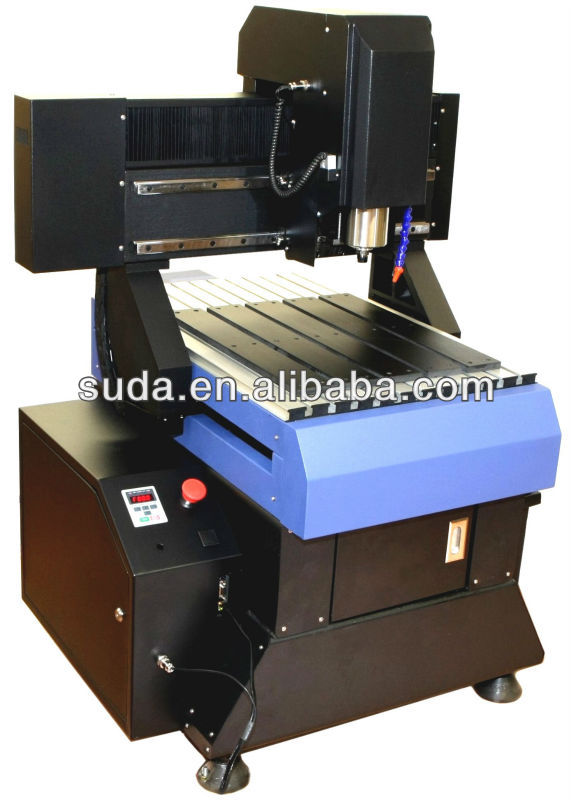

1.5KW spindle motor cooled by water, :Two-nut rolling ball screw from Germany, One set type3 software orginal from France, CE - details see: https://www.machineto.com/suda-linear-rail-cnc-engraver-and-cutter-sd5040-10343152

Model	SD5040 CNC Router
XY Guide	Rolling ball screw from Germany
Table size (cm)	50*40
Z Guide	Rolling ball screw from Germany
XYZ movement(mm)	500 x400 x80
Spindle power	1500W BOL air cooled spindle motor,italy’s technical,Made in China
Spindle speed (min/max)	6000-18000 U/Min.
Machine dimension (cm)	70*58*100cm
Packing dimension(cm)	103*96*138
Machine sturcture	All steel machine frame,special design
Weight (kg)	320KGS
Power consumption without spindle	More than 1000W
Speed max.	0-100mm/s
Working speed max.	100mm/s
Stepper or servo motor?	Stepping motor
XYZ accuracy	0,4mm
Reposition accuracy	0,01mm
XY resolution	0,025mm
Z resolution	0,025mm
Table surface	PVC Table and Aluninum
XY drive configuration	roll screws
Z drive configuration	roll screws
Included Software	Type3 V4.3 englishshipping with the machine
Software Compatible with	Win98/Win2000/XP
Spindle coolingsystem	water cooled
Spindle collet	ER11
Software transmission language	G-Code, HPGL
Control System	SUDA FPGA COLORED LCM CONTROLLING SYSTEM which inner memory has 2 GB, also transmitting files from USB flash disk
Interface	Transimt the file from USB flask disk directly
Voltage	220VAC/50-60Hz
Running environment	0-35°C, humidity: 10-70%
Production time	7 working days when we received all the payment by T/T

x,y z axis can upgrade into linear rail to keep more accuracy !
