45 feeding, corona processing, ink UV solidify, good printing effect, fast cores and film changing, auto-stacking and counting - details see: https://www.machineto.com/six-color-cup-printer-10070513

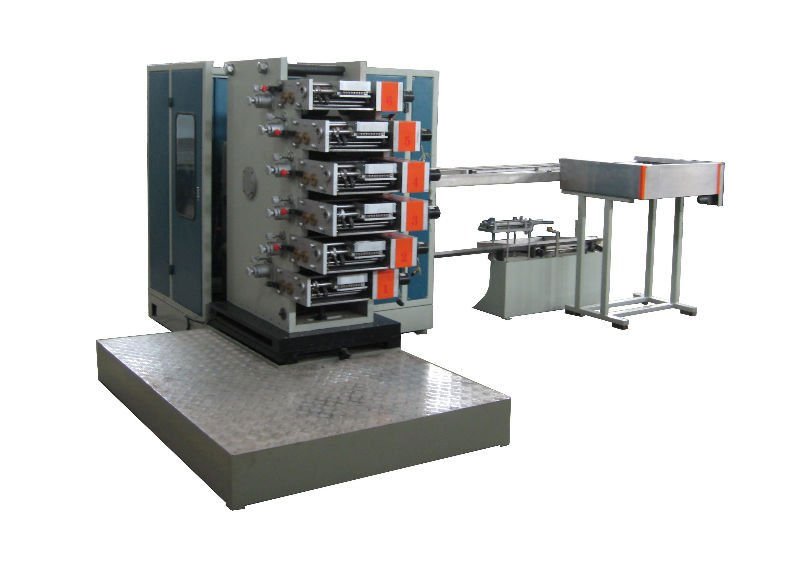

Six colors curved offset printer is mainly use for plastic cup surface printing, this machine contain cup feeding equipment, printing equipment(including turn printing big wheel,film printing wheel,color unit), graduator and cup receiving equipment. Controlled by servo motor and PLC touch screen to actualize the automatic ink mixing instead of the manual ink mixing, The operating system is simple to use, the control system have high automatic level and reliability.

This machine provide 45°cup feeding, corona processing, ink UV solidify, good printing effect, fast cores and film changing, auto-stacking and counting. The machine is good at printing beverage cup,milk cup,ice cream cup,fast food bowl, etc.

Specification:

1	Power	12 Kw
2	Max. print taper	14°
3	Cup diameter	Ø50-Ø130mm
4	Printing width	100mm
5	Max. speed	18000 pcs/h
6	Mainframe size	1740×2580×2170mm
7	Feeder size	3190×800×2150mm
8	Overall weight	4200 Kg
