Side loading truck
Price on request
Pricing is provided on request — use the quote form below.
- Port
- Shanghai
- Minimum Order Quantity
- 1 Set/Sets
- Supply Ability
- 500 Set/Sets per Year
- Payment Terms
- L/C,T/T
Price on request
Pricing is provided on request — use the quote form below.
Something wrong with this listing? Report it

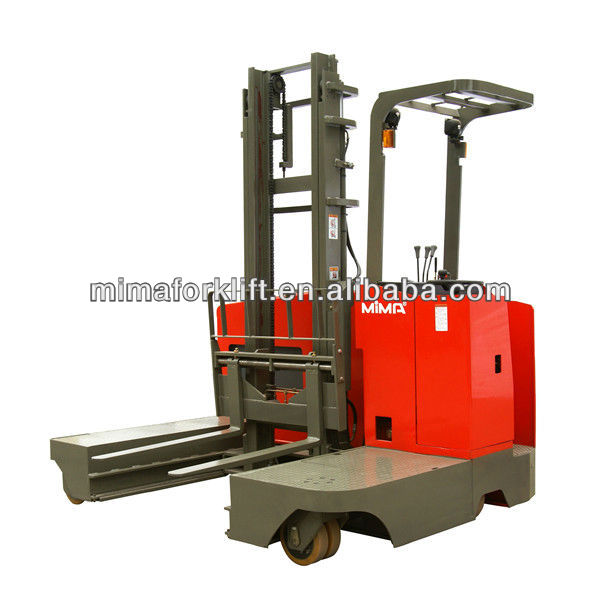

TD Series side loading forklift truck, rated load capacity: 2500kg, lift hieght: 7200mm, used for long material transportation
| Condition | New | Place of Origin | Anhui China (Mainland) |
|---|---|---|---|
| Model Number | TD15-30 | Type | Powered Pallet Truck |
| Power Souce | AC Motor | Rated Loading Capacity | 1500kg |
| Max. Lifting Height | 7200mm | Min. Lifting Height | 3000mm |
| Fork Length | 850mm | Fork Width | 100mm |
| Overall Dimensions | 2450mm*1830mm*2250mm | Certification | CE,ISO,SGS |
| After-sales Service Provided | Overseas third-party support available | Color | Red |
| TD Series side loading forklift truck, rated load capacity | 2500kg, lift hieght: 7200mm, used for long material transportation |
| Packaging Detail | nude pack |
|---|---|
| Delivery Detail | 45 days |
| Description Model No. | TD15-30 |
| Rated Capacity (KG) | 1500 |
| Operate Type | Stand-on |
| Max. Lifting Height (MM) | 3000 |
| Min. Turning Radius (MM) | 2422 |
| Min. Stacking Aisle-- mm (1000*1000 Pallet) | 2622 |
| Max Travel Speed km/h -laden/unladen | 6.0/7.0 |
| Load center MM | 500 |
| Fork Dimensions -L/W/T---mm | 850*100*35 |
| Lifting Speed (MM/S)-laden/unladen | 120/270 |
| Overall Length (MM) | 2450 |
| Overall Width (MM) | 1830 |
| Height-Overhead guard--mm | 2250 |
| Height---Mast Lowered (MM) | 2104 |
| Height-Mast Extended w/ Load-Backrest -mm | 3885 |
| Height--Free Lift --mm | 100 |
| Outrigger Height ---mm | 415 |
| Tilt Angle---- Upward/Downward--deg. | 3/5 |
| ForkSpread Range(MM) | 247-973 |
| Reach Stroke | 1050 |
| Min Ground Clearance--mm | 84 |
| Wheel Type | Polyurethane Solid Tyre |
| Driving Wheel (MM) | Φ343×108 |
| Balance Wheel (MM) | Φ180×76 |
| Front Wheel (MM) | Φ267×114 |
| Swivel Caster Wheel---mm | Φ267×76 |
| BatteryV/AH-Domestic BRAND | 48V /300 AH |
| Service Brake | Electromagnetic |
| Parking Brake | Electromagnetic |
| Charger-Intelligent | 48V /40 A |
| Driving Motor (KW) | 5.5 (AC) |
| Lifting Motor (KW) | 6.3 |
