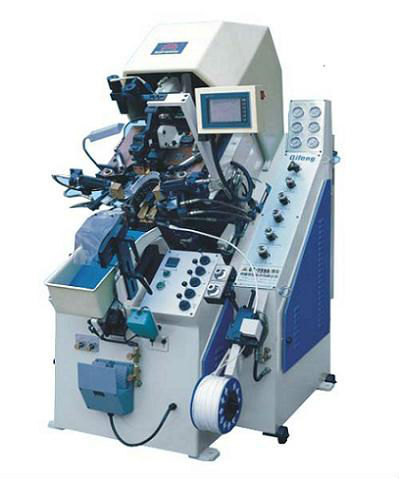

Shoe Machinery Toe Lasting Machine

Name: Shoe Machinery Toe Lasting Machine
SKU: 10267868

Model QF-738DA(MA) Shoe Cementing Machines Guangdong,China(Mainland) Ref 10267868

Price on request

Pricing is provided on request — use the quote form below.

Port: Shenzhen port-China
Minimum Order Quantity: 1 Set/Sets
Supply Ability: 100 Set/Sets per Month
Payment Terms: T/T

Something wrong with this listing? Report it

Key features

1) Toe lasting machine of shoe machinery·2) PLC control·3) Auto-cement·4) Excelent cementing result·Shoe machinery for toes

Specifications

Condition	New	Place of Origin	Guangdong China (Mainland)
Model Number	QF-738DA(MA)	After-sales Service Provided	Engineers available to service machinery overseas
Details	1) Toe lasting machine of shoe machinery · 2) PLC control · 3) Auto-cement · 4) Excelent cementing result · Shoe machinery for toes

Packaging & delivery

Packaging Detail	wooden case packing
Delivery Detail	45 days

Product description

This shoe machine /shoemaking machine using all-around forming band and special track wiper can make upper lasted even,enhanced outlooking ,improved quality and without angle after lasting,
The 9 independent pincers can be individually adjusted to cope with the lasting of any shape of shoe toes,The automatic balance device and the theory automatic descending on wipers' advancing are the very key points for upgranding the quality and raising the production capacity.
Auxiliary wiper struction:
Auxiliary wiper can increase turn-arround lasting length till front and middle connecting turn-ouer position that coordinate with 9 pincer toe lasting can make forpart be more closer to last via such kind of lasting.
Cement plate size adjusted structures.
Generally,as for auto-cement of forpart cementing plate with fixed style,can't be regulated arbitray.Because the adjusted structure is suitable for produce with different size.At the meanwhile,as for mixed production,you can adjust the plate size and with fast speed without using the tools,so that the giue-point can cement on the appropriate position with small and big size.Cementing more perfectly,However you don't have to change the plate with big quantity of the same style.
The wipers are functioned with inching movement and speed adjustment,which makes the whole adjustment of lasting control more convenient.
The machine is equipped with cross projector assembly,which is convenient for correcting toe lasting and helps new comers to easily operate the machine.
The rapid installing and releasing structure for pincers can finsish the whole process within 30 second.
The height of the last support plate is remotely controlled.There is a numerical instruction provided for reference which makes the operation easier and more efficient.
The pressure and speed for each mechanism are adjusted tand the pressure gage is also installed at the outside of the machine which makes the operation and adjustment more conveniently.
Speedy adjustment of pincers fixed plate:'
The pincers fixed plate adopts the double-tracking structure.It is independently adjusted ont the right and left.The rotary point of pincers fixed plate is located at the joint between the first and second pincers.The curve in between will not be changed when the groups Of right and left pincers are adjusted,which will make the uppers more attached to the lasts.

Model	Dimensions	Packing size	Weight	Production	Power
QF-738DA(MA)	170010001950mm	180011602100mm	1100KG	1200Pairs/8hrs	2HP

FAQ

What model is this machine?: The model number is QF-738DA(MA).
Is it new or used?: Condition: New.
What warranty is offered?: Warranty: Engineers available to service machinery overseas.
