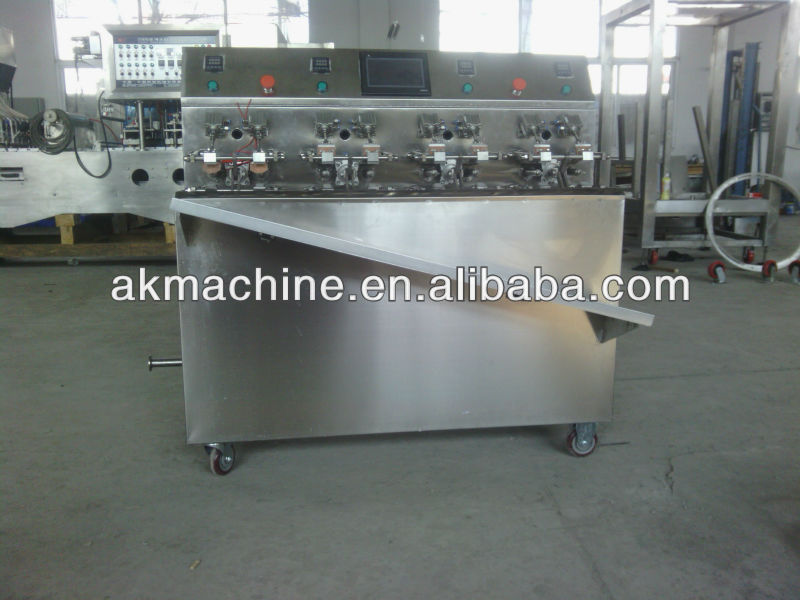

Semi Automatic Stick Bag Packing Machine

Type: Stick Bag Packing Machine - details see: https://www.machineto.com/semi-automatic-stick-bag-packing-machine-10056605

Type:Filling Machine	Condition:New	Application:Beverage	Packaging Type:Bags
Packaging Material:Plastic	Automatic Grade:Semi-Automatic	Driven Type:Electric	Voltage:220V,50HZ
Power:1.2kw-1.6kw	Place of Origin:Jiangsu China (Mainland)	Brand Name:AK	Model Number:AK-S010
Dimension(LWH):10505601360mm	Weight:180kg	Certification:CE	After-sales Service Provided:Engineers available to service machinery overseas

Feature

Semi Automatic Stick Bag Packing Machine

1. automatic filling and sealing
2. PLC control
3. with 8 nozzles

1 The machine is designed with four working positions and eight heads for filling.Each two heads can be controlled separately,therefore causing no stopping and waiting time in operation and providing improved efficiency.

2 The machine can be operated by one person.Continuous filling,sealing and unloading can be achieved by one person putting the bag in machine continuously,without pressing the switch at all.The efficiency can reach 2000 to 3500 bags/hour(original at home)

Main Technical Standards

Pouch filling

and sealing machine

Technical parameters:

Efficiency:800-1600bags/hour

Power:220V.50HZ

Power:1.2kw

Packing range:50-500ml

Size:1050*560*1360mm

Pouch filling

and sealing machine

Technical parameters:

Efficiency:800-3000bags/hour

Weight:180kg

Power:220V.50HZ

Power:1.2-1.6kw

Packing range:50-500ml

Pouch filling

and sealing machine

Technical parameters:

Efficiency:2000-5000bags/h

Weight:750kg

Power:220V.50HZ

Power:3.8kw

Packing range:50-500ml

After Sales Service

The machine which we supply to you, we can give you one year after-sale warranty,

we also can arrange our engineer(s) to your factory to install the equipment and train your staffs by your requirment , but you should pay the round air ticket cost and arrange the hotel accommodation for our engineer(s).

Detail pictures:
