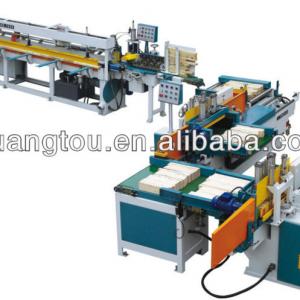

Semi auto finger joint production line

1) Save labor, 2) High efficience, 8 timbers/min, 3) Good quality with the competitive price - details see: https://www.machineto.com/semi-auto-finger-joint-production-line-10342384

Condition:New	Spindle Speed:2825r.p.m/ 2850r.p.m	Air Pressure:0.8Mpa	Max. Working Width:590mm
Max Working Height:180mm	Place of Origin:China (Mainland)	Brand Name:Bald	Model Number:RL-590A
Voltage:220v	Power(W):4.375kw	Dimension(LWH):6720x1250x1600mm/ 2800x1650x1450mm/3300x1900x1450mm	Certification:CE
Warranty:1 Year	After-sales Service Provided:Engineers available to service machinery overseas

contact supplier for Semi auto finger joint production line

Techinical Parameters	Finger tenon jointer MHZ1546/1560	Finger tenon shaper MXB3518A-B	Finger tenon shaper MXB3518C-B
Max.wokring length	4600mm/6200mm	900mm	900mm
Max.wokring windth&height	Max.width:150mm	Width:590mm	Width:590mm
	Min.width:30mm	Height:150mm	Height:150mm
	Max.width:75mm
	Min.width:20mm
Feeding speed	70m/min
Conveyor motor power		400w	400w
Saw blade diameter	φ355mm	φ200mm	φ200mm
Rotary speed	2825r.p.m	2825.r.p.m	2825.r.p.m
Motor power	2.2kw	0.75kw	(0.75kwx2)kw
Saw blade(rear) diameter		φ250mm	φ250mm
Rotary speed		2840.r.p.m	2840.r.p.m
Motor power		4kw	4kw
Miller cutter diameter		φ240mm	φ240mm
Tenon spindle diameter		φ50mm	φ50mm
Rotary speed		6750.r.p.m	6750.r.p.m
Motor power		11kw	11kw
Oil pump output max.pressure	140kg/cm²	70kg/cm²	70kg/cm²
Oil pump motor power	4kw	2.2kw	2.2kw
Working air pressure	0.8Mpa	0.8Mpa	0.8Mpa
Rating voltage	380V 50Hz 3ph	380V 50Hz 3ph	380V 50Hz 3ph
Machine Dimension	6720x1250x1600mm	2800x1650x1450mm	3300x1900x1450mm
	7300x1250x1500mm
N.W	4.6m:7240kgs
	6.2m:7580kgs
