sandpaper sheet making machine
Price on request
Pricing is provided on request — use the quote form below.
- Port
- Shanghai,Ningbo
- Minimum Order Quantity
- 1 Set/Sets Set
- Supply Ability
- 80 Set/Sets per Month Month
- Payment Terms
- T/T
Price on request
Pricing is provided on request — use the quote form below.
Something wrong with this listing? Report it
sandpaper sheet making machine·1.Fast speed&fastness·2.Longlife&low maintaince·3.Easy control quality·4.Hydraulic cutting
| Condition | New | Type | cutting machine |
|---|---|---|---|
| Place of Origin | Jiangsu China (Mainland) | Model Number | XCLL3-350/550 |
| Certification | ISO9001 | Warranty | one year |
| Processing Type | Farbic/Leather/EPE/Carboard | Usage | Cutting Machine |
| Controlling Mode | Machine Center | Precision | High Precision |
| Color | Customized | Automatic Grade | Automatic |
| Standard | ISO9001:2000 | Details | sandpaper sheet making machine · 1.Fast speed&fastness · 2.Longlife&low maintaince · 3.Easy control quality · 4.Hydraulic cutting |
| Packaging Detail | in fumigated wooden case |
|---|---|
| Delivery Detail | within 7 days after receipt deposit |

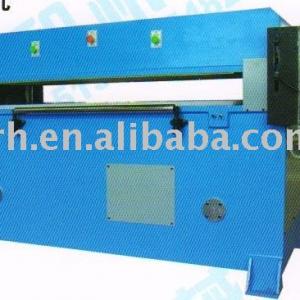

Ssandpaper sheet making machine
Usage:
This machine is suitable for cardboard, carpet, textiles, plastic materials, toy, small wood, synthetic fiber, leather, forming cutting industries. With wide, cutting force big advantage.
Feature:
(1) Appling four-popst type and double connecting rods double precision balance, which reaches the high- tonnage cutting force and saves the energy.
(2) Lubrication system can guarantee the machine precision and prolong service life.
(3) Can be easily abtained trimming device, the best cutting knife moule and cutting board longvity.
(4) Using the fiywheel inertia can instanly cutting materal.
Technic Specification:
| Name | Hydraulic plane cutting machine | ||
| Model | XCLL3-250 | XCLL3-350 | XCLL3-500 |
| Max cutting force | 250KN | 350KN | 500KN |
| Cutting speed | 0.2m/s | 0.2m/s | 0.2m/s |
| Sway arm width | 10-100mm | 10-140mm | 10-140mm |
| Effective length | 50-150mm | 50-150mm | 50-150mm |
| Main motor power | 2.2Kw | 4Kw | 5.5Kw |
| Dimession of the plane(length×width) | 1620×500mm | 1620×650mm | 1620×800mm |
| Space size | 1880×700×1600mm | 2050×760×1650mm | 2250×900×1700mm |
| Tolal weight | 1500Kg | 2800Kg | 4000Kg |
| Energy power | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Oil tank capacity | 70L | 90L | 130L |
