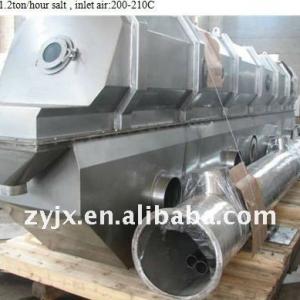

Salt Dryer

Salt Dryer, 1.Capacity: 0.6-5ton/hour salt, 2. Food grade machine, 3. Heating way: coal / gas/ oil /steam / electrical - details see: https://www.machineto.com/salt-dryer-10291319
Condition:NewType:Fluid Bed Drying EquipmentPlace of Origin:Jiangsu China (Mainland)Brand Name:KEWEI
Model Number:ZLGCertification:ISOWarranty:1 yearSalt Drying Machinery:Salt Dryer
Salt Dryer
contact supplier for Salt Dryer


Salt Dryer

1.Capacity: 0.6-5ton/hour salt
2. Food grade machine
3. Heating way: coal / gas/ oil /steam / electrical

Working principle
Raw material is fed into the material from the inlet of the drying machine and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carried out heat exchange with damp raw material. Then the damp air is exhausted out through cyclone separator and duster. The dry raw material is discharged through discharge outlet.

MAIN APPLICATION
Salt and Foodstuff and construction materials industries: Lees, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds and so on
It can also used for raw material to add up damp or cooling and so on.

FEATURE
1. Raw material is heated evenly and heat exchanger is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
2. The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long li
3. The fluidized state is stable and no dead angle and phenomenon of broken out
4. It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjustable through continuous variable speed.
5. It is small for damaging the suiface of raw material. The equipment can be used for drying materials that are easy broken. The drying effect can not be affected even if raw material have anomaly shape.
6. It is effective to prevent from cross pollution between raw material and air because the equipment adapts fully closed structure.

modelarea of fliudaed(M²)temperature of inlat air(ºC)temperature of outlet air(ºC)capacity to vap[or moisture(kg/h)vabration power
ZLG3X0.300.970-18040-8010-400.8x2
ZLG4.5X0.301.3570-18040-8020-500.8x2
ZLG4.5X0.452.02570-18040-8030-701.1x2
ZLG4.5X0.602.770-18040-8050-1001.1x2
ZLG6x0.452.770-18040-8050-1001.5x2
ZLG6X0.603.670-18040-8080-1301.5x2
ZLG6X0.754.570-18040-80110-1602.2x2
ZLG6X0.95.470-18040-80130-1802.2x2
ZLG7.5X0.604.570-18040-80110-1902.2x2

ZLG7.5X0.605.62570-18040-80140-1903.0X2
ZLG7.5X0.96.7570-18040-80150-2003.0X2
ZLG7.5X1.2970-18040-80180-2503.0X2
modelarea of fliudaed(M²)temperature of inlat air(ºC)temperature of outlet air(ºC)capacity to vap[or moisture(kg/h)vabration power

Salt Dryer
Packaging Detail:suit for ship
Delivery Detail:50-75days
