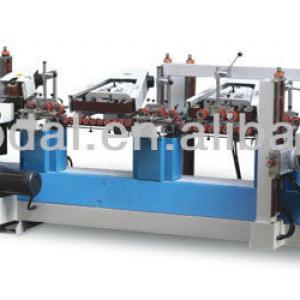

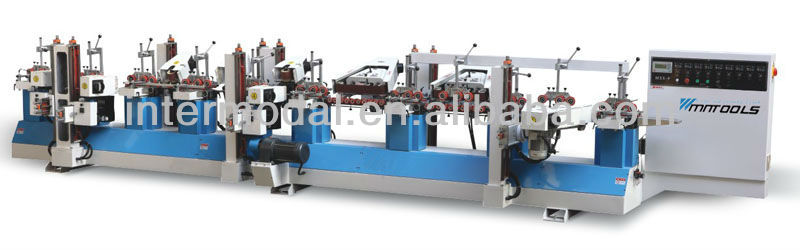

Profile sander

Profile sander, We can supply different function edge sander. - details see: https://www.machineto.com/profile-sander-10324223

Condition:New	Place of Origin:Shandong China (Mainland)	Brand Name:MNTools	Model Number:MTES-S3W6
Power(W):18.4KW	Dimension(LWH):650017001550mm	Weight:3T

Proflie sander

Model No.	MTES-S3W6
Processing width	10-200mm
Min. Working length	450mm
Max. Working thickness	3-100mm
Feeding speed	3-42m/min
Number of spindle	8sets
Spindle speed	600-4200r/min
Spindle rotation	-45°~135°
Spindle size	φ25.4*100mm
Sand unit number	3pcs
Max. Sanding width of sand unit	80mm
Tilting of sanding unit	Adjustable
Sand unit with auto pendulum	Automatic
Motor power of sanding unit	1.5kw*3
Grinding wheel size	200mm
Caliber of dust collector	100mm
Working air pressure	0.2~0.6Mpa
Feeding motor	2.2kw
Spindle motor power	2.2kw*6
Total power	18.4kw
Overall dimensions	650017001550mm
Net weight	3t
