1.Suitable for variety materials, 2.Doctor blade, 3.Ceramic anilox roller, 4.infrared EPC system, 5.Auto tension controller - details see: https://www.machineto.com/precio-competitivo-impressora-flexografica-10066756

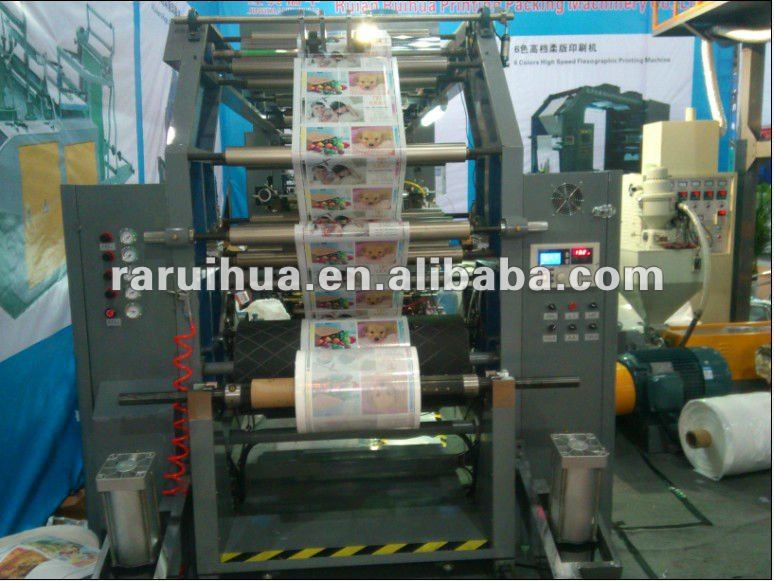

precio competitivo impressora flexografica

Detailed Product Description

-Main Technical Parameter:

1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased

2. High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering

3. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.

4. The special made modulus angular gears adopted printing size and full printing specifications (5mm is spec)

5. With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices

6. Printing rolls should keep moving while machine halted

7. Material holder use air shaft

8. Auto tension control

9. Unwind with auto deviation correction system (EPC)

10. EDGE position control

11. Reversible printing 6 color press for 6+0,1+5,2+4,3+3

12.1 set of printing cylinder, size 15 inches

printing width Item	600mm	800mm	1000mm	1200mm	1400mm	1600mm	1800mm	2000mm
Printing color	6(PC:6+0,5+1,4+2,3+3)
Printing length	7.5”-40”/7.5”-50”/7.5”-60”/7.5”-70”/7.5”-80”
Printing plate lifting system	Hydraulic press control
Menchanical speed	100m/min
Printing speed	80m/min
Anilox cylinder	Ceramic: 10DK~120DK(Germany technology)
Register precision	Longitude:±0.25mm,Transverse±0.25mm
Rewinder/UnwinderDIA	φ600mm
Master motor	3.7kw	3.7kw	5.5kw	5.5kw	7.5kw	7.5kw	11kw	11kw
Unwinder motor	1.1kw		1.5kw		2.2kw		3.0kw
Rewinder motor	1.5kw		2.2kw		3.0kw		3.7kw
Electrical heater	14kw	16kw	20kw	22kw	24kw	26kw	28kw	30kkw
Blower of heater	1.5kw*2	1.1kw*3	1.1kw*3	1.1kw*3	1.5kw*3	1.5kw*3	2.2kw*3	2.2kw*3
Blower of nature wind	0.75kw	0.75kw	1.1kw	1.1kw	1.1kw	1.5kw	1.5kw	1.5kw
Inking motor	370w	750w	750w	750w	750w	750w	750w	750w
Master frequency converter	(Panasonic)/ (Toshiba)transducer Japan
Bearing	Japan(NSK)
Unilateral bearing	ASNU(Germany)
Weight	4500kg	4750kg	5000kg	5250kg	5500kg	5750kg	6000kg	6300kg
Master Power	25k	27kw	34kw	37kw	43kw	47kw	55kw	58kw
Dimension(L*W*H)	4.8m* 1.8m* 2.8m	4.8m* 2.0m* 2.8m	4.8m* 2.2m* 2.8m	4.8m* 2.4m* 2.8m	4.8m* 2.6m* 2.8m	4.8m* 2.8m* 2.8m	4.8m* 3.0m* 2.8m	4.8m* 3.2m* 2.8m
