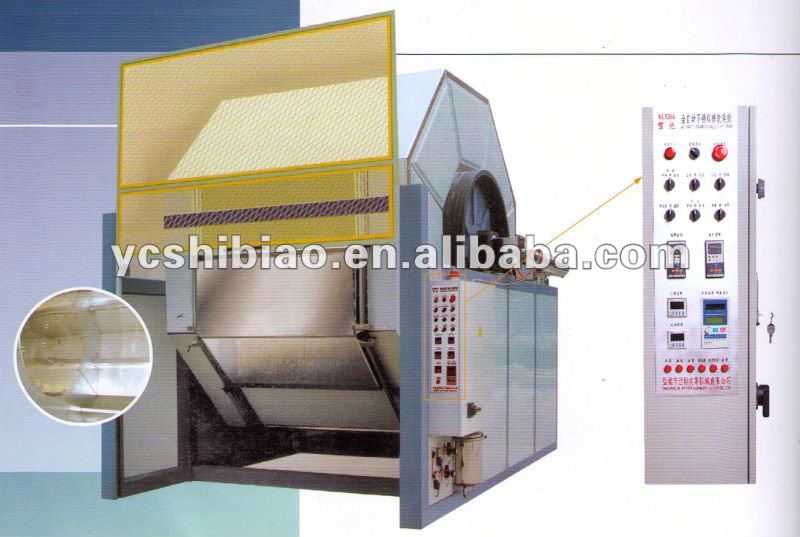

Octagonal Stainless Steel Milling Drum

1.size:D 3.2m W 2.1m, 2.material:304 stainless steel, 3.loading capacity:900kg, 4.function:milling, 5.Motor power:15 kW - details see: https://www.machineto.com/octagonal-stainless-steel-milling-drum-10265395
Place of Origin:Jiangsu China (Mainland)Brand Name:ShibiaoModel Number:GJOFsize:D3.2m L2.1m
material:304 stainless steelloading capacity:900kgmotor power:15kWspeed:5-20rpm
function:millingcontrol system:control heat & humidity
Octagonal Stainless Steel Milling Drum
contact supplier for Octagonal Stainless Steel Milling Drum


The stainless steel octagonal milling drum is completely made of stainless steel. It's integrated with milling, dust-removal, automatic temperature control, and humidity control. It has the functions of frequency-conversion speed adjusting, automatic / manual control of front and back running, stopping, mist spraying, material feeding, temperature improving / decreasing, humidity increasing / decreasing, numerical control rotation speed, positioned stopping, flexible starting and retarding braking, as well as time-delay start and stop, timer alarm, protection against fault, safety pre-alarming, etc. Especially, the drum door adopts the air cylinder drive to achieve an easy operation and reliable sealing effect. The machine is installed in an integral structure to realize the convenient operation and reliable sealing. It's the ideal product to replace the imported one with the whole installation, stable operation, higher automatization, energy saving, environmental protection and beautiful appearance.

Technical and specification:

Size of the drum: D3.2mx2.1m

Rotation speed of drum: 5-20rpm

Motor's power: 15kw

Total power: 25kw

Whole weight: 5500kg

Octagonal Stainless Steel Milling Drum
Packaging Detail:whole
Delivery Detail:Depend on the quantity of order
