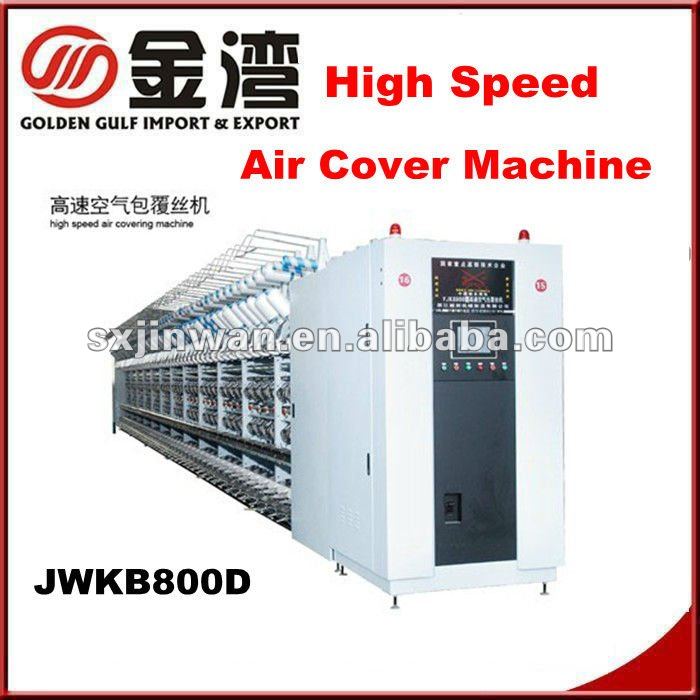

New developped air covering machine

Model 800D Textile Raw Material Machines Zhejiang,China(Mainland) Ref 10279216

Price on request

Pricing is provided on request — use the quote form below.

Port
Ningbo or Shanghai
Minimum Order Quantity
1 Set/Sets
Supply Ability
100 Set/Sets per Month
Payment Terms
L/C,T/T

Request a Quote

Product: New developped air covering machine

Attachment optional · PDF, Word, Excel, image · max 10 MB
No file chosen
We usually reply within 12 hours.

Key features

High speed·Two side of this machine are relatively independent·Best after sales serivice·flexible operation

Specifications

Place of Origin Zhejiang China (Mainland) Model Number 800D
spindles 96 spindels, 8 spindles per section max speed 700m/min
diameter of friction roller 90mm pitch 1520mm
distance of two spindles 370mm Intermingle nozzle working pressure 0.30-0.6mpa
Details High speed · Two side of this machine are relatively independent · Best after sales serivice · flexible operation

Packaging & delivery

Packaging Detailwooden packing suit for long transportation
Delivery Detail40 days after receive the deposit or the original L/C

Product description

Technical parameter

Number of Spindles

96 spindles (standard model), 8 spindles every group

Max. speed700m/min(speed of roller||)
Diameter of friction rollerΦ90mm
pitch1520mm
Distance of two spindles370mm
Draft times of spandex1.5-5times
Arrange of fiber(dtex)22~110dtex(POY or Nylon) 20~70D(spandex)
Intermingle nozzle working pressure0.30~0.6Mpa
Max. bobbin sizeΦ250*250mm
Take-up bobbin sizeΦ250*250mm(double tapers bobbin, taper degree 75 or straight side)
Overall size21500*2090*2575mm
Standard weight of take-up5.0kg
Whole power14.52kw

Features:

The mainly point is optimized the silk path, maximum limit reduced the yarn in the producing process winding and the friction, reduced the damage between silk path to the silk, maximum limit the reduced the webbreak and the broken yarn production, thus satisfied the user to produce the thin and porous silk request. This machine has achieved a machine multipurpose function. The product enhances one time, is domestic, the international original creation, it is the most advanced, most reliable , and has highest performance-to-price ratio superior products in the similar products in the market.

2, Two side of this machine are relatively independent. The technology can be set separately. Different types and denier yarn can be processed at the same time. This function satisfied the customer who changes the products frequently.

3, The machine driven by high-strength synchronizing with the teeth with a transmission, simple structure, little noise. All the key part of the bearings are made of imported and domestic brand products, further increased the performance. Minimized the downtime rate, can continuous working more than 8000 hours with trouble.

4, The electrical system adopted the electrical machinery velocity modulation control asynchronous communication technology, the machine driven by the measuring speed feedback systems and drag to the control of speed, precision is less than 0.5%. The screen operation technique in which facilitated the technological parameters of the setting.

5, Adopted special structure of the metal tank with the precision of the electrical control, to achieve a sophisticated rolled around and effectively prevent system, make the silk has good fold and hard against when involution, enables the silk to have good high speed draws back performance.

6, The machine has detectors system, it can prevent the problem the yarn cut by cutter which happened in the working process, ensure the yarn no longer feeding and wind the roller, so that reduced damage and improving efficiency.

FAQ

What model is this machine?
The model number is 800D.
