Price on request
Pricing is provided on request — use the quote form below.
Something wrong with this listing? Report it
Red wine filling machine·1) Rinser/filling/capper machine·2) Bottle material: PET, glass.3) volume: 0.15l-2.5l
| Place of Origin | Jiangsu China (Mainland) | Model Number | NC series Red wine filling machine |
|---|---|---|---|
| Machine | Red wine filling machine | Type | Filling machine |
| Processing type | wine | Control | PLC |
| Automatic grade | Full automatic | Material | 304/316 SUS |
| HS code | 8422301090 | Components origin | Japan,German etc. |
| Guarantee | 1 year | Funcation | washing,filling,capping |
| Details | Red wine filling machine · 1) Rinser/filling/capper machine · 2) Bottle material: PET, glass.3) volume: 0.15l-2.5l |
| Packaging Detail | wooden cases for Red wine filling machine |
|---|---|
| Delivery Detail | 30 working days for Red wine filling machine |

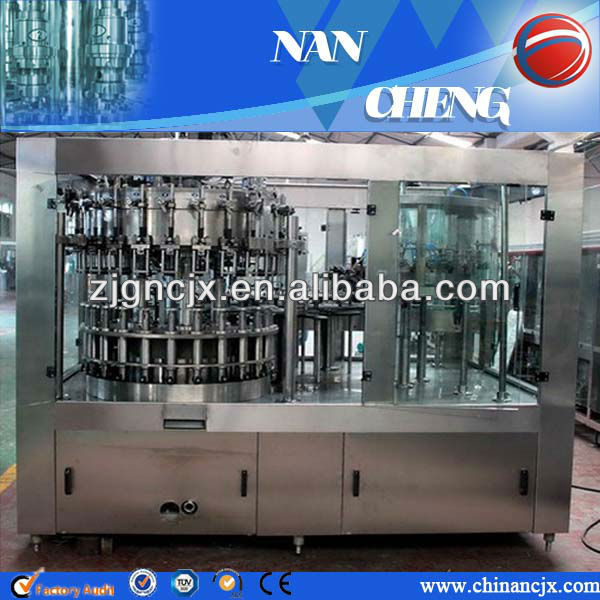

Red wine filling machine
Equipment description:
1.This kind ofwine filling machinecombines washing,filling and rotary capping functions in one unit.It is a fully automatic and high efficiency liquid packing equipment.
2.wine filling machineis suitable for packing beverage containing gas.wine filling machine's performance is as following all parts,for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature.
3.wine filling machineUsing programmable controller to realize fully automatic control from bottles entering to finishing packing,wine filling machineUsing transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements, Adopting equal pressure filling principle and current spring valves in order to assure beverage quality, Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.
Technical parameters:
| Model | DCGF18186 | DCGF24248 | DCGF323212 | DCGF404015 | DCGF505018 | DCGF606020 |
| Head of washing, filling, sealing | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-18 | 60-60-20 |
| Production capacity (bottle/hour) | 5000-6000 | 6000-7000 | 8000-9000 | 10000 | 11000 | 15000 |
| Suitable bottle diameter(mm) | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml | φ=50-100 H=150-310 330-1500ml |
| Filling precision | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm |
| Motor power | 3.84kw | 4.1kw | 5.6kw | 7.5kw | 9kw | 11kw |
| Filling pressure | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
| Overall dimension (mm) | 2400×1900×2300 | 2800×2100×2300 | 4200×2300×2300 | 5000×2800×2400 | 5900×3100×2400 | 6500×3500×2400 |
| Weight(Kg) | 3000 | 4000 | 5000 | 7500 | 9000 | 11000 |
Pictures:
Certifications:
Workshop&fctory:
If you have any question about our machines,let me know,sincere service for you and welcome to visit NANCHENG!
