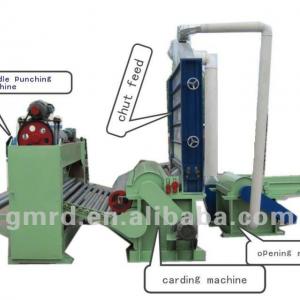

Needle Punching Machine for Non Woven Production

Needle Punching Machine for Non Woven Production

Model GMZ-2600 Textile Raw Material Machines Shandong,China(Mainland) Ref 10279333

Price on request

Pricing is provided on request — use the quote form below.

Port
Qingdao
Minimum Order Quantity
1 Set/Sets
Supply Ability
10 Set/Sets per Month
Payment Terms
T/T

Something wrong with this listing? Report it

Request a Quote

Product: Needle Punching Machine for Non Woven Production

Attachment optional · PDF, Word, Excel, image · max 10 MB
No file chosen
We usually reply within 12 hours.

Key features

Advantages: width can be adjusted, speed adjustable, thickness can be adjusted, strong degree adjustable, etc.

Specifications

Place of Origin Shandong China (Mainland) Model Number GMZ-2600
Certificate CE certificate Working Width 2.6M
Power 28KW Stroke Frequency 100 - 650s/min
Advantages width can be adjusted, speed adjustable, thickness can be adjusted, strong degree adjustable, etc.

Packaging & delivery

Packaging DetailExport Standards Packing
Delivery Detailwithin 10 days

Product description

  • characteristic of Needle loom Cotton Machine

Needle-punched cotton machine can be fleeciness fiber, cotton to comb cotton, spread nets, acupuncture, strengthening become needle-punched cotton, insulating felt, raw materials of greenhouse, shoes, mattresses, sofa cushion, car seat rug, chemical product and different specification product.

  • Main Technical data of Needle loom Cotton Machine

Main Technical Data of opening Machine

Output130-200 kg /hr
Diameter of cylinder400mm
Speed1400r/min
Main motor7.5kw
Reducer1.1 kw
weight500 kg
Size2040*1500*1030mm

Main Technical Data of Carding Machine

Diameter of cylinder450mm
Speed1100 r/min
Main motor7.5kw
Reducer1.1kw
Size of one machine2900mm*1100mm*1250mm
Weightabout 1400 kg

Main Technical Data of Chute feed

Fan4 kw
Size1850*320*2600mm
Weightabout 100 kg

Main Technical Data of needle loom

Width of products2.3-2.5m
Thickness of products5-15mm
Output7-8m/min 500-1500GSM
Needling Frequency100-650 times/min
Needling Travel35-65mm
Number of Needle5000 pcs(first) / 6000 pcs(second)
Main motor7.5kw
Reducer1.5kw
Size of one machine3000mm*700mm*2300mm
Weightabout 1800 kg

FAQ

What model is this machine?
The model number is GMZ-2600.
What power does it require?
Power requirement: 28KW.
What certifications does it have?
Certification: CE certificate.
