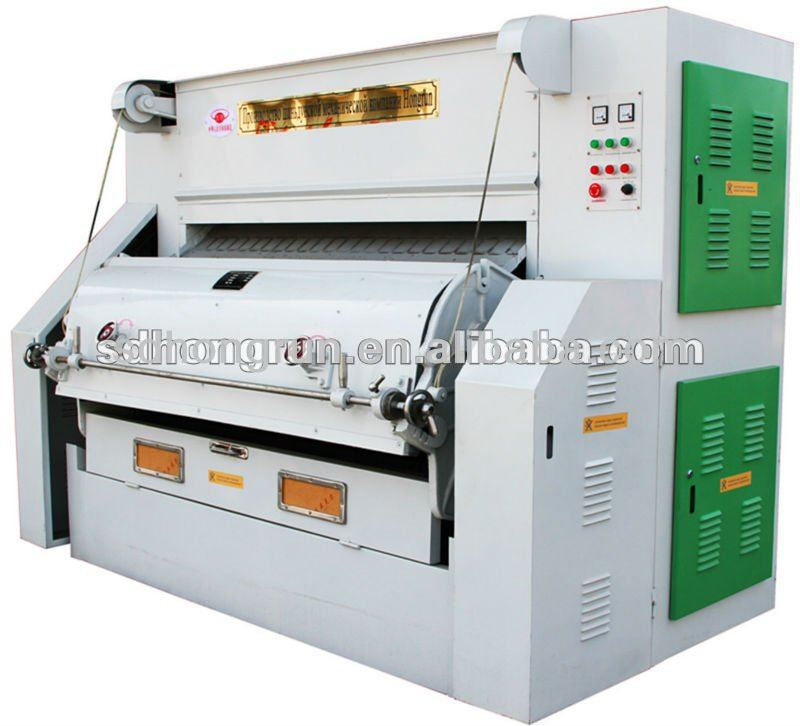

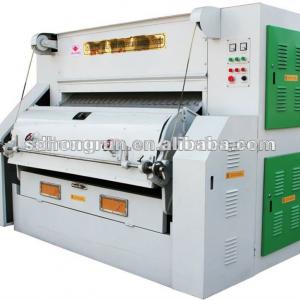

MR-144C sawtooth linter

Model MR-144C sawtooth linter Textile Raw Material Machines Shandong,China(Mainland) Ref 10279873

Price on request

Pricing is provided on request — use the quote form below.

Port
Qingdao
Minimum Order Quantity
1 Set/Sets
Supply Ability
800 Set/Sets per Year
Payment Terms
L/C,T/T

Request a Quote

Product: MR-144C sawtooth linter

Attachment optional · PDF, Word, Excel, image · max 10 MB
No file chosen
We usually reply within 12 hours.

Key features

MR-144C sawtooth linter:·1. award 4 patents·2. low power consumption·3. high quality·4. high output

Specifications

Condition New Type Cotton
Place of Origin Shandong China (Mainland) Model Number MR-144C sawtooth linter
Voltage 380V Power(W) 38.5KW
Weight 2 Ton,2t Certification ISO9001
Warranty 1 Year After-sales Service Provided Engineers available to service machinery overseas
linter MR-144C sawtooth linter power 24.35 KW
Overall dimension 2500*1800*1900(mm) Saw-blade number 144pcs
Saw-blade interval 11.11mm The 1st process capacity 3500-4500
The 2nd process capacity 1000-1500 The 3rd process capacity 750-1000
Details MR-144C sawtooth linter: · 1. award 4 patents · 2. low power consumption · 3. high quality · 4. high output

Packaging & delivery

Packaging Detailstandard export package
Delivery Detail20 days after down payment

Product description

MR-144C sawtooth linter

MR-144C sawtooth linter:
1. award 4 patents
2. low power consumption
3. high quality
4. high output

1. MR-144C sawtooth linter is used tostrip the lint from gross cotton seed.

2. We adopt new technology, new process and new material to make the work property improve effectively, especially highlight its obvious advantages for the auto control cabinet and production efficiency .

3. MR-144C sawtooth linter can be divided into three specifications separately used tostrip the 1st, 2nd and 3rd cut lint; the 2nd and 3rd belong to air-flow type.

4. MR-144C sawtooth linter can be used as matching equipment with other cotton ginning machine ( the match ratio depends on the actual requirements)

1. Main technical parameters

MR-144C sawtooth linter

Process capacity (kg/h)
The first process capacity3500-4500
The second process capacity1000-1500
The third process capacity750-1000
Lint output ratio (%)
The first lint output ratio1-1.5
The second lint output ratio4-6
The third lint output ratio2.5-3.5
Short-time lint output (kg)
The first short-time lint output0.29
The second short-time lint output0.35
The third short-time lint output0.21

2. Main technical parameters

MR-144C sawtooth linter

Roller of saw-blade(φ280-φ320)×1588.73(mm)

The first of the tooth-shape angle of saw blade is40°, the second and the third is

28°( tooth height 5-5.5mm)

Saw-blade number144 pcs
Saw-blade interval11.11mm
Max. frame inclination28-30°
Discharge-strip clearance2.8-3(mm)
Blowing-rate at lint outlet1.5-1.6 m3/s(non-load)
Wind-speed at lint outlet19-20 m/s(non-load)
Power equipped24.35 KW
Overall dimension2500×1800×1900(mm)
Weight2t

3. Motor model for MR-144C sawtooth linter :

Y160L-4 15KW Y132M-4 7.5KW

Y90S-4 1.1KW Y80M2-4 0.75KW

MR-144C sawtooth linter

FAQ

What model is this machine?
The model number is MR-144C sawtooth linter.
What type of machine is it?
It is a Cotton.
Is it new or used?
Condition: New.
What power does it require?
Power requirement: 24.35 KW.
What voltage does it operate on?
Operating voltage: 380V.
How much does it weigh?
Weight: 2 Ton,2t.
What certifications does it have?
Certification: ISO9001.
What warranty is offered?
Warranty: 1 Year.
