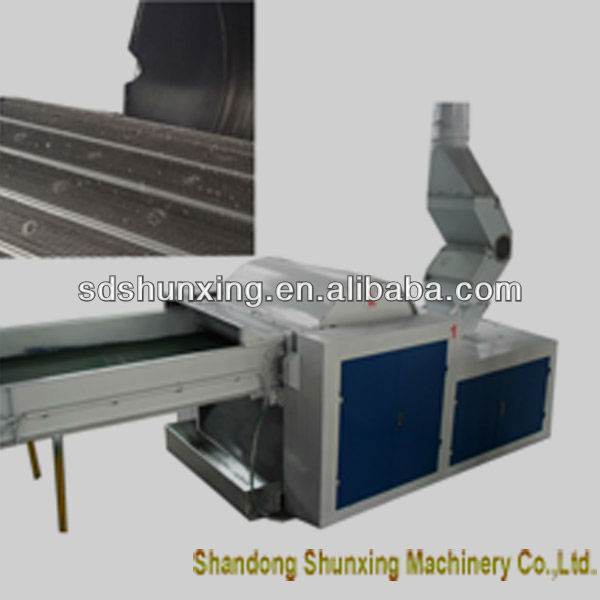

MQK-700 OPENING MACHINE with pins

Name: MQK-700 OPENING MACHINE with pins
SKU: 10279659

Model MQK-700 Textile Raw Material Machines Shandong,China(Mainland) Ref 10279659

Price on request

Pricing is provided on request — use the quote form below.

Port: qingdao
Minimum Order Quantity: 1 Set/Sets
Supply Ability: 10 Set/Sets per Week
Payment Terms: L/C,T/T

Something wrong with this listing? Report it

Key features

1,pin roller·2,capacity:300-400kg/h·3,diameter roller:700mm·It is a new model that our company has manufactured.

Specifications

Condition	New	Type	Cotton
Place of Origin	Shandong China (Mainland)	Model Number	MQK-700
Voltage	380V	Power(W)	20KW
Weight	2000KG	Dimension(LWH)	350017001250
Certification	CE,ISO 9001	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas	color	white or blue
Details	1,pin roller · 2,capacity:300-400kg/h · 3,diameter roller:700mm · It is a new model that our company has manufactured.

Packaging & delivery

Packaging Detail	no package
Delivery Detail	with in one week

Product description

It is used to open the yarn waste, fabric waste, help to loosen the fiber of the fabric waste, yarn waste etc. It can help to protect the fiber length of the regenerated cotton on the highest level .Same time, reduce the damage of the wire of GM machine series and increase the working efficiency of GM machine series. It includes waste removal system, so that raw material which not well processed will be sent back automatically by the waste removal system.

1. OUTPUT: 200-300kg/h

2. Nail cylinder dia.:700 mm

3. Cylinder speed: 800 rpm

4. Dust collection:outside dia:500 mm, mesh : 2

5. Main motor:Y180M-4,18.5KW 1 set

6. Fan:Y100L2-4,3KW 1 set

7. Gear box:Y90L-4,1.5KW 1 set

8. Nail board:special

9. Bearing:cylinder 2213K four

dust collection box :UCPL205 four

10. Overall(L×W×H): 3520×1700×1250 mm

11. Weight:1000kg
