Medium-pressure Marine Air Receiver

High quality air receiver, air bottle,air vessel - details see: https://www.machineto.com/medium-pressure-marine-air-receiver-10301091

Condition:New	Place of Origin:China (Mainland)	Brand Name:LANGE	Model Number:A
After-sales Service Provided:Overseas service center available	name:air bottle

Product features:

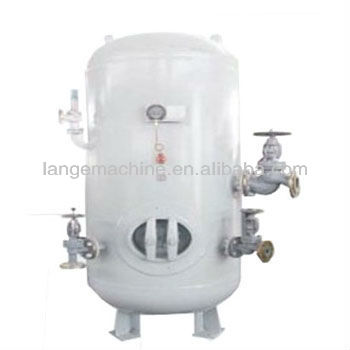

A-Type Marine Air Receiver include vertical-type and inclination-type
Used to store compressed air, which supply start-up or air whistle for main engine and auxiliary engine.

A-type made up of valve group and steel body. Body has handhole(or manhole) for easy wash and examination. The bottle valve assembled with inlet/outlet, safety valve, pressure gauge and pressure gauge valve, drain valve etc.


Technical Data
Model	Capacity	Design Pressure	Work Pressuer	Design Temperature	Internal Diameter	Height	Weight
Model	m³	mpa	Mpa	°C	mm	mm	kg
MCAS201-AR201	0.05	3.3	3.0	100	350	910	74
MCAS201-AR202	0.08	3.3	3.0	100	350	1260	95
MCAS201-AR203	0.10	3.3	3.0	100	400	1280	106
MCAS201-AR204	0.16	3.3	3.0	100	400	1650	138
MCAS201-AR205	0.25	3.3	3.0	100	500	1660	267
MCAS201-AR206	0.32	3.3	3.0	100	520	2050	165
MCAS201-AR207	0.40	3.3	3.0	100	600	1950	335
MCAS201-AR208	0.50	3.3	3.0	100	600	2290	420
Note:The models in stylebook are part of our products,if you have any requirement,plesae contact with us.
