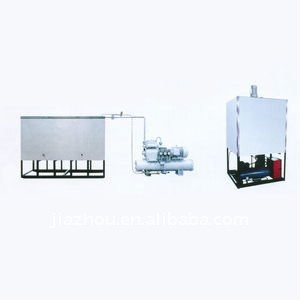

LY Series Cooling Tank
1.cooling tank, 2.Tank Volume:1.6,2,33:Weight:1050kg,1230kg,1250kg - details see: https://www.machineto.com/ly-series-cooling-tank-10025841
| Processing:Heat Exchanger,Storage Tank | Place of Origin:Jiangsu China (Mainland) | Brand Name:JIAZHOU | Model Number:LY |
| Processing Types:Water | Automatic Grade:Automatic | Category:Beverage Processing Machinery | Supplier Location:China(Mainland) |
cooling tank
The tank contains compressor using freon F-12 as refrigerant, and pressure sensor, and temperature regulator for automatic controlling. It is necessary equipment for aerated water and sparking wine production industry.
| items | LY-1600 | LY-2000 | LY-3000 |
| compressor model | 2F6.3-S | JZS-2F-10 | JZS-4F-10 |
| tank volume(m3) | 1.6 | 2 | 3 |
| vapouring area(m²) | 7.2 | 11 | 20 |
| refrigeranting capacity(kj/h) | 33440(dual) | 58520 | 117040 |
| water output(kg/h) | 100-1000 | 1000-1500 | 1500-2000 |
| out put water temperature(°c) | 0-5 | 0-5 | 0-5 |
| power(kw) | 6(dual) | 11 | 22 |
| overall dimensions(mm) | 2200*1200*2100 | 2200*1200*1700 | 2280*1400*1800 |
| weight(kg) | 1050 | 1230 | 1250 |
| Packaging Detail:wood case |
| Delivery Detail:20 days |
