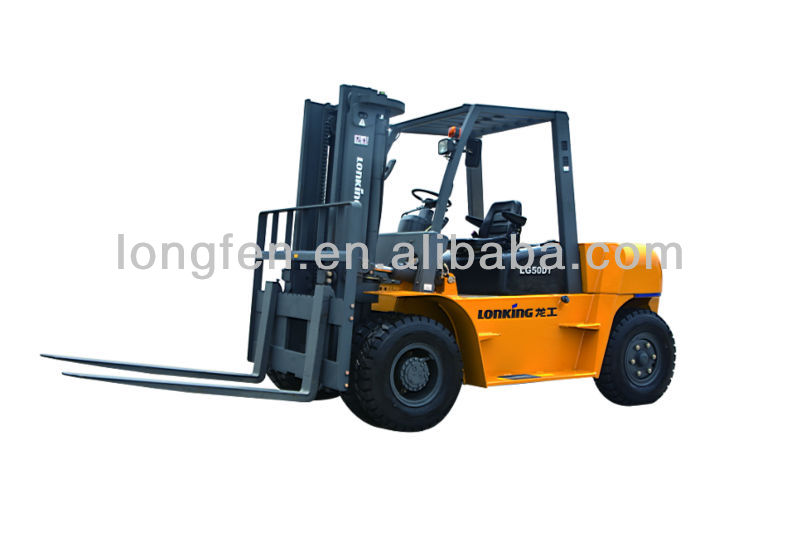

Lonking 5ton diesel forklift truck
Price on request
Pricing is provided on request — use the quote form below.
- Port
- shanghai
- Minimum Order Quantity
- 1 Set/Sets
- Supply Ability
- 100 Set/Sets per Month
- Payment Terms
- L/C,T/T
Price on request
Pricing is provided on request — use the quote form below.
Something wrong with this listing? Report it
Internal Combustion Forklift·Equipped with Chaochai Engine or Imported Isuzu Engine·Advanced Ergonomical Design·Large Capacit
| Condition | New | Place of Origin | Shanghai China (Mainland) |
|---|---|---|---|
| Model Number | LG50DT | Power Souce | Diesel Engine |
| Rated Loading Capacity | 5000KG | Max. Lifting Height | 6M |
| Min. Lifting Height | 3M | Fork Length | 1220mm |
| Fork Width | 150mm | Overall Dimensions | 4660x2000x2500 |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
| color | yellow | Details | Internal Combustion Forklift · Equipped with Chaochai Engine or Imported Isuzu Engine · Advanced Ergonomical Design · Large Capacit |
| Packaging Detail | standard packing |
|---|---|
| Delivery Detail | 20 days after advance payment |
| MODEL | LG50DT |
|---|---|
| Power type | Diesel |
| Rated capacity (Kg) | 5000 |
| J Load centre (mm) | 600 |
| h1 STD Max lifting height (mm) | 3000 |
| h3 Free lift height (mm) | 200 |
| L5×W×T STD Fork size (mm) | 1220×150×60 |
| Mast tilt angle (deg) | 6/12 |
| L3 Front overhang (mm) | 589 |
| L4 Rear overhang (mm) | 645 |
| Overall dimension | |
| L1 Overall Length(with fork) (mm) | 4704 |
| W1 Overall width (mm) | 2000 |
| h2 Mast lowered height (mm) | 2500 |
| h4 Overhead guard height (mm) | 2480 |
| R1 Min. turning radius (mm) | 3370 |
| Min. turning aisle (mm) | 5400 |
| Speed(load/unload) | |
| Max. traveling speed (km/h) | 24/25 |
| Max. lifting speed (mm/s) | 350/450 |
| Max. gradient (%) | 20 |
| Dead weight (kg) | 8600 |
| S/P Tread(front/rear) (mm) | 1470/1700 |
| L2 Axle distance (mm) | 2250 |
| Min.ground clearance | |
| m2 Mast (mm) | 201 |
| m1 Frame (mm) | 248 |
| STD Engine | Chaochai CY6102BG |
| Rated power | 81kW |
