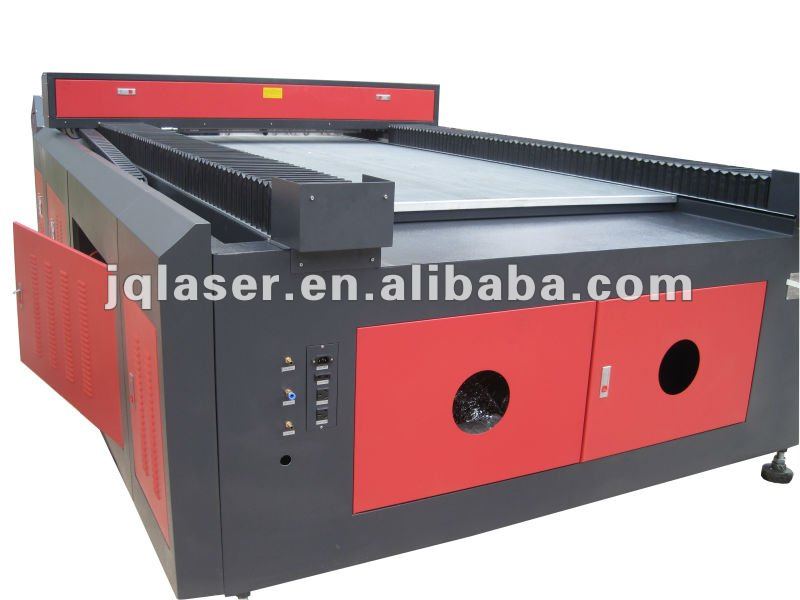

JQ1525 textile laser cutting machine with CE/FDA
Price on request
Pricing is provided on request — use the quote form below.
- Port
- Qingdao Port
- Minimum Order Quantity
- 1 Set/Sets
- Supply Ability
- 300 Set/Sets per Month
- Payment Terms
- T/T
Price on request
Pricing is provided on request — use the quote form below.
Something wrong with this listing? Report it
textile laser cutting machine with CE/FDA·1)Working Area: 1500*2500mm·2)3 phases stepper motor·3)for textile cutting
| Place of Origin | Shandong China (Mainland) | Model Number | JQ1525 |
|---|---|---|---|
| Color | Optional | working table | 1500mm*2500mm |
| suitable for | textile cutting | controller card | MPC6535 |
| software | laser cut 5.3 | cutting speed | 0-40000mm/min |
| location precision | below 0.01mm | machine ganrantee | 2 years |
| cooling system | water cooling | Details | textile laser cutting machine with CE/FDA · 1)Working Area: 1500*2500mm · 2)3 phases stepper motor · 3)for textile cutting |
| Packaging Detail | standard wood case |
|---|---|
| Delivery Detail | Within 15 Days |
JQ1525 textile laser cutting machine with CE/FDA:
Performance Features:
1. Configure high power laser tube.
2. DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3. Owns functions of restoring from power off, continuation on break point.
4. Transmit files directly in Coreldraw, AutoCAD,etc.
5. Adopt international linear rail, more precision.
Machine Parameters:
| Model | JQ1525 textile laser cutting machine with CE/FDA |
| Laser Power | 80W/100W/150W |
| Laser Type | CO2 sealed, glass laser tube, water cooling |
| Work Area | 1500 X 2500 mm |
| Cooling Type | Water-cooled and Protection System |
| Engraving Scanning Speed | 0-70000 mm/min |
| Cutting Speed | 0-40000mm/min |
| Laser Output Control | 1-100% Software Setting |
| Smallest Character Engraving | English: 1.0X1.0 mm |
| Highest Scanning Precision | 2500DPI |
| Power Supply | AC 110-220V±10%, 50-60Hz |
| Operating Temperature | 0°-45°C |
| Operating Humidity | 5%-95% |
| Locating Precision | ≤±0.01mm |
| Supported File Format | DSTPLTBMPDXFAI |
| Compatible Software | TAJIMACORELDRAWPHOTOSHOPAUTOCADAll Type of AUTOCAD Software in cloth |
| Slope Engraving | 360°Slope Can Be Designed Easily |
| Driving System | Stepper Electrical Motor |
| Package Dimension | 3560X2120X1320 mm |
| Net Weight | 1100KGS |
| Gross Weight | 1150KGS |
| Optional Spare Parts | Rotary System, Honeycomb Worktable |
| Removable Spare Parts | Laser Tube and Lens |
Applicable Industries:Garments sampling, large width tailoring, leather industry, shoemaking
decoration, furniture, advertisement, packing and printing, molding and art craft industries, etc.
Applicable Materials:Fabrics, leather, paper. bamboo ware, acrylic, glass, films and canvas,
wood, porcelain, acryl, cloth, etc.
Guaranteeand after sale service:
*2 year guarantee for whole machine; 8 months for laser tube and mirrors
* 24 hours technical calling or e-mail service for any technical questions of our machine
* We offer detailed User Manual for machine installation, operation, and also for Software
* Nous allons fournir l’information la plus détaillée sur l’utilisation de la machine, et 24 heures de service en ligne. Le client est toujours d’abord, la haute qualité, le meilleur prix et un bon service.
