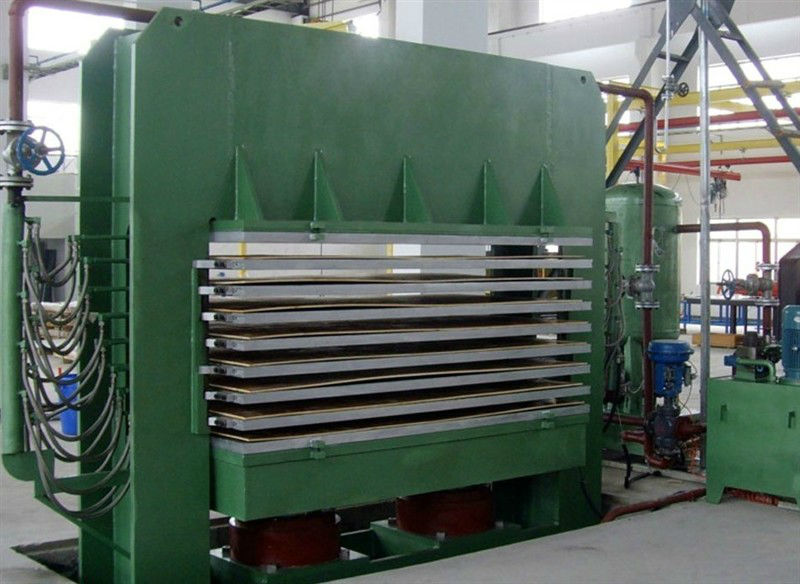

JIN LUN melamine hot press machine/ 400T 3*6 feet hot press/ melamine boarding machine
1.for making plywood, etc, 2.easy to maintain or operate, 3.excellent parts, special design, 4.professional manufacturer - details see: https://www.machineto.com/jin-lun-melamine-hot-press-machine-400t-3-6-feet-hot-press-melamine-boarding-machine-10344761
| Condition:New | Type:Hot Press Machine | Place of Origin:Shandong China (Mainland) | Brand Name:JIN LUN |
| Model Number:BY21-4'*8'/40 | Voltage:380v | Power(W):11kw | Dimension(L*W*H):3360*1250*3960mm |
| Weight:15-30T | Certification:CE ISO9000 | Warranty:3 years | After-sales Service Provided:Engineers available to service machinery overseas |
| usage:for making plywood |
| Model | BY21-4'*8'/40 |
| Quantity and Diameter of Cylinder | 2 units Φ320mm |
| Nominal Pressure | 400Tons |
| pre-press opening | 1800mm |
| Hydraulic system control method | Manually/Automatic controlled |
| Hydraulic system pressure | 25MPa |
| Main motor | 7.5KW |
| Pressurized motor | 5.5KW |
| Main pump | 100:100 double connection lamina flue pump |
| Pressurized pump | 10ml/rev plunger pump |
| Heating Meduim in the heating platen | steam or heat transfer oils |
| main frame steel plate thickness | 30,22,12mm |
| Upper, Bottom crossbeam | 800,700mm |
| Movable crossbeam | 2500*1250*400mm |
| Dimensions of Main frame | 3360*1250*3960mm |
| width of movable crossbeam | 30mm |
| Packaging Detail:export standard packing |
| Delivery Detail:30 days after receipt deposit |
