Intaglio printing machinery

1)printing machinery, 2)suitable for HDPE, 3)1-8color gravuer, 4)CE and ISO9001, 5) one year warranty - details see: https://www.machineto.com/intaglio-printing-machinery-10074471
Type:Rotogravure Printing MachineCondition:NewPlace of Origin:Zhejiang China (Mainland)Brand Name:Highsea
Model Number:ASY-600 ASY-800 ASY-1000Usage:Paper PrinterAutomatic Grade:AutomaticColor & Page:Multicolor
Gross Power:2kw ----4kwDimensions(L*W*H):1200*1400*2000suitable material:HDPEwarranty:one year
Plate Type:Gravure
Intaglio printing machinery
contact supplier for Intaglio printing machinery

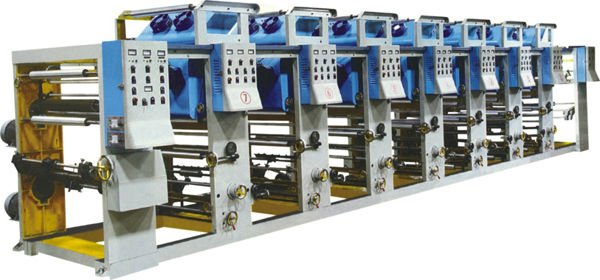

1-8 Color Gravure Combined Plastic Film Color-printing Machinery

Use:

This machine is suitable for continuously printing various plastic films, fabrics, thin leather and other packaging products, and can print one face or double faces for one time. The 360°register sets can ensure printing color matching to be randomly regulated at any time and accurate register without affecting the film stretching. The infrared tube drying device can realize drying to 60m/min. The patterns are clear and exquisite. Machineswith 1-8 colors are available.

Main Technical Parameters:

ModelASY-600ASY-800ASY-1000
Printing Width600mm800mm1000mm
Printing Length200-750mm200-1100mm200-1100mm
Printing Speed10-60m/min10-60m/min10-60m/min
Accurate Registration<0.06-0.20mm<0.06-0.20mm<0.06-0.20mm
Power of Main Motor2.2kw4kw27.5kw
Power of Fan0.12kw×2/group0.12kw×2/group0.12kw×2/group
Heating Power2kw/group3kw/group4kw/group
Overall Dimension1200(number+1)×1400×2000mm1200(number+1)×1600×2000mm1200(number+1)×1800×2000mm
Intaglio printing machinery
Packaging Detail:wooden case
Delivery Detail:about one month
