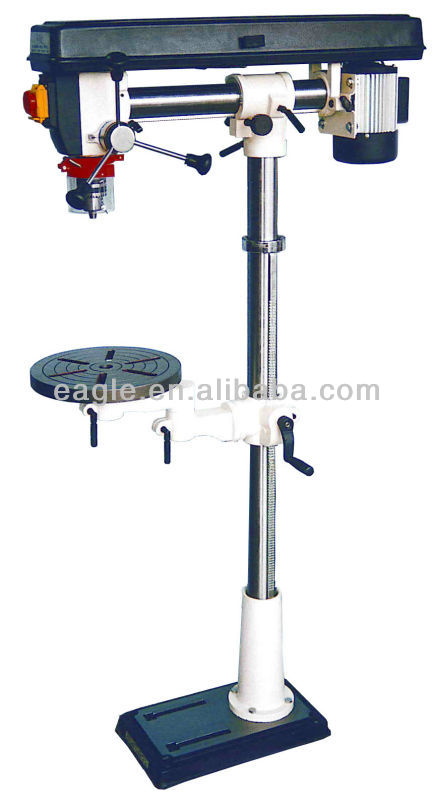

Industrial Drilling Machine

Industrial Drilling Machine - details see: https://www.machineto.com/industrial-drilling-machine-10125382

Condition:New	CNC or Not:Normal	Place of Origin:Shandong China (Mainland)	Brand Name:eagle
Model Number:DX	package:plywood case

Specification

Model	DXV 16	DXV 16A	DXS 20	DXS 25
Motor(W)	370/550	370/550	550	750
Swing (mm)	840	840	1100	1175
Chucksize (mm)	3-16	3-16	3-16	3-16
Max drilling capacity(mm)	16	16	20	25
Taper	B16/MT2	B16/MT2	MT2	MT3
Spindle travel(mm)	80	80	80	80
No of speed	5	5	12	12
Horizontal arm travel(mm)	320	320	/	/
Speed range(rpm)/50Hz	460-2890	460-2890	120~2580	120~2580
Speed range(rpm)/60Hz	550-3470	550-3470	140~3050	140~3050
Overall height(mm)	790	1630	1000	1000
Packing size(mm)	900×460×320	1420x500x260	1070×800×480	1070×800×480
Packing size(mm)	900×460×320	1420x500x260	1070×800×480	1070×800×480
N.G weight (kgs)	37/40	61/65	163/208	173/218
N.G weight (kgs)	37/40	61/65	163/208	173/218
Units/20"container	220	159	70	70
Item No.	411060	411062	411064	411066
*Model DXV : Horizontal drilling
*Model DXS : Head tills 360 degree,Large base with 24" long slots,Extra heavy ball bearing spindle
