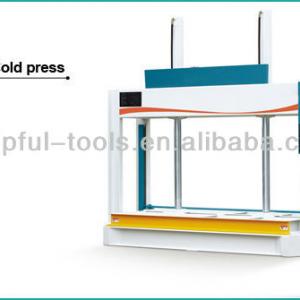

Hydraulic cold press

1)max pressure:50T (80T and 120T opotional), 2)max processing thickness:1200mm, 3)iron cast worktable size:1300x2500mm - details see: https://www.machineto.com/hydraulic-cold-press-10346050
Condition:NewType:Cold PressApplication:pressPressure:50T 80T 100T
Place of Origin:Shandong China (Mainland)Brand Name:HELPFULModel Number:HE500Voltage:380V
Hydraulic cold press
contact supplier for Hydraulic cold press

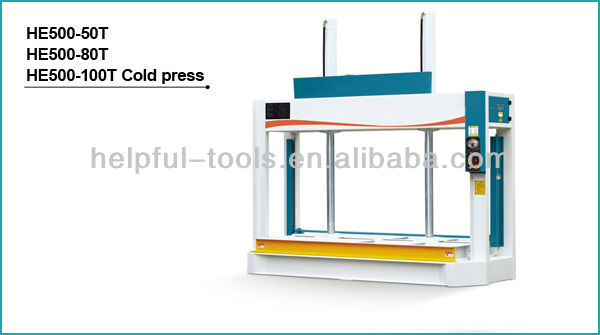

ModelHE500-50THE500-80THE500-100T
Press platen size1300*2500mm1300*2500mm1300*2500mm
Max. total thrust50T(1.4kg/cm2)80T(2.5kg/cm2)100T(2.2kg/cm2)
Pressure of hydraulic system210kg/cm2200kg/cm2200kg/cm2
Max. platen opening1000mm1000mm1000mm
Oil cylinderØ110mm*2Ø125mm*2Ø125mm*4
Hydraulic motor power3.0kw5.5kw5.5kw
Outline size3000*1250*3050mm3050*1300*3500mm3050*1300*3500mm
Net weight2300kgs3000kgs3500kgs

Hydraulic cold press
Packaging Detail:PALLET
Delivery Detail:20 DAYS
