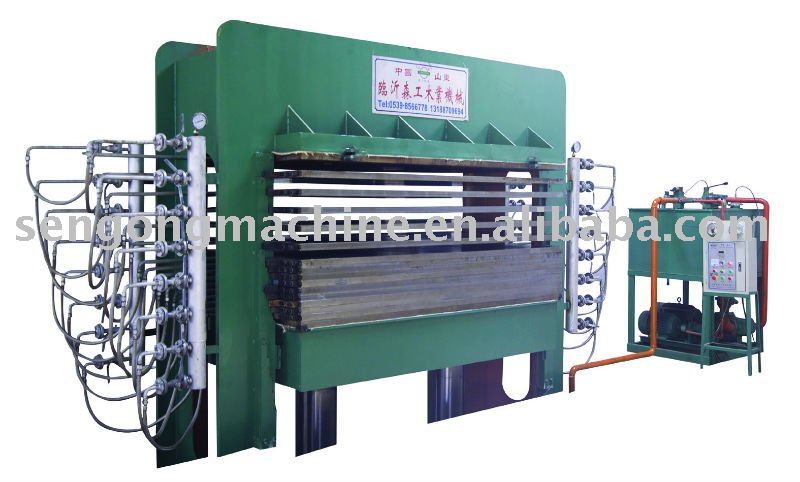

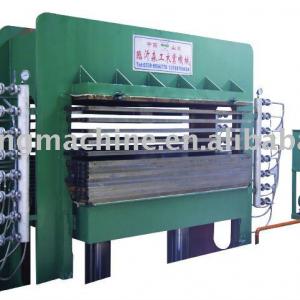

Hot Press

1. High quality with reasonable price., 2. Automatic Hydraulic system and easy to operate., 3 .Can work in hard environment. - details see: https://www.machineto.com/hot-press-10346484

Condition:New	Type:Hot Press	Place of Origin:Shandong China (Mainland)	Brand Name:YUNCHANG
Model Number:SG48R	Name:Hot Press	Application:For Making Plywood	Original:LINYI CHINA
Pressure:300 TONS	Plates:16	Daylights:15

1	Nominal pressure	300 T
2	Opening	15
4	Hot platen size	2700×1370×42 mm
5	Heating system	Heat transfer oils
6	Cylinder	280mm×2
8	Working stroke	800 mm
9	Oil pressure	26 Mpa
10	Upper beam	900 mm
11	Bottom beam	900 mm
12	Middle cross beam	450 mm
13	Thickness of the frame	35 mm
15	Control method	Automatic control
17	Net weight	About 28T
18	Overall dimensions	355013704100 mm
