1. ISO&CE certificate, 2. One year warranty, 3. OEM color & logo, 4.vmax forklift can meet the various specific requirements - details see: https://www.machineto.com/hot-china-2-5-ton-electric-forklift-truck-with-best-price-10109885

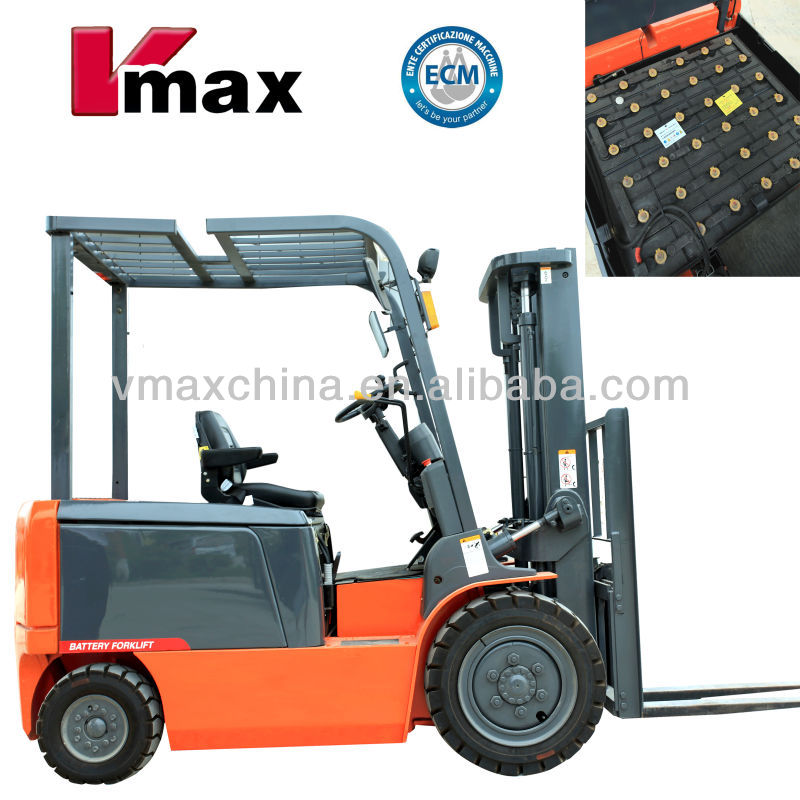

Specification 2-2.5ton electric forklift trucks
Model		CPD20	CPD25
Load capacity kg		2000	2500
Load center mm		500	500
Power type		Battery Powered(DC/AC)
Max.lifting speeds(with load) mm/s		250	230
Max.Driving speeds(with without load) km/h		12.5/14	12/14
Max.Towing speeds(with load) kN		10	10
Gradeability(with load) %		15	15
Lifting height mm		3000	3000
Free lift mm		60	60
Tilting angles(forward-backward) .		6/12	6/12
Min. turning radius mm		2200	2250
Min. right angle aisle width mm		2050	2100
Min. under-clearance mm		110	110
Dimensions	A Overall length (inincluding fork) mm	3350	3380
	B Overall width mm	1160	1160
	H Overall height(mast lowered) mm	2130	2130
	H2 Overall height(mast extend) mm	4040	4040
H3 Overall height to overhead guard mm		2130	2130
B3 Fork width mm		100	122
H4 Fork thickness mm		40	40
A3 Fork length mm		920(1070)	920(1070)
A1 Fork overhang mm		451	451
A2 Wheel base mm		1550	1550
Tread	Front tread mm	970	970
	Rear tread mm	950	950
Tyre	Front tyre	7.00-12	7.00-12
	Rear tyre	18×7-8	18×7-8
Total weight kg		3950	4300
Motor	Traction motor	XQ-8	XQ-8
	Lifting motor	XQD-10-3S	XQD-10-3S
Battery	Battery type	D-600(700)	D-700
	Battery voltage/Capacity V/Ah	48/600(700)	48/700

OTHERS :
A:date of delivery:15-25days after received the deposit
B:payment terms:T/T(30% deposit,balance paid before shipment).Or L/C at sight
C:Guaranty period: one year or 2000hours upon receiving goods.
