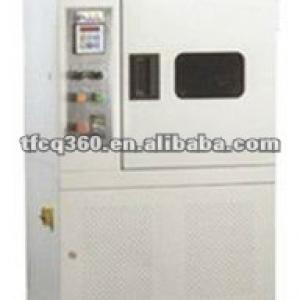

Machine/Infrared Ray Beaker Dyeing Machine/HT Dyeing Machine - details see: https://www.machineto.com/high-temperature-dyeing-machine-10278185

1. Take the advantages of both traditional infrared ray high temperature dyeing machine and glycerin

2. Smart appearance inner and outer body are made of stainless steel made with plastic spraying coating, with in-built control box

3. Installation of intelligent mirco-computer to real-time monitor laboratory dyeing work and set the program of temperature, running speed, heating, cooling rate. The program is 99, 10 steps

4. Use infra red heating pipe(6*1000w)

5. Adopt 200ml, 350ml, 420ml, 1000ml to suit different kinds of fabric dyeing

6. Apply to not only large liquor ratio, but also low liquor ratio( 1:4-30)

7. The bottom part is for placing the dye pot

Specification

Heating Method: Infrared Ray

Heating Medium:Heat Transfer Oil( sealed in rotatory jar with excellent heat insulation)

Temperature Range: 20°C-140°C

Cooling Method: Air-cooled

Rotatory Way: Tumble type( clockwise and anticlockwise running ability)

Material of Beaker: Stainless Steel 316L,

Volume of Beakr:200cc, 350cc,420cc,1000cc

Amount of Beaker:18/24 beakers

Rated Power: 4kw, 4.5kw

Rated Power: 380V, Three Phrase, 50HZ
