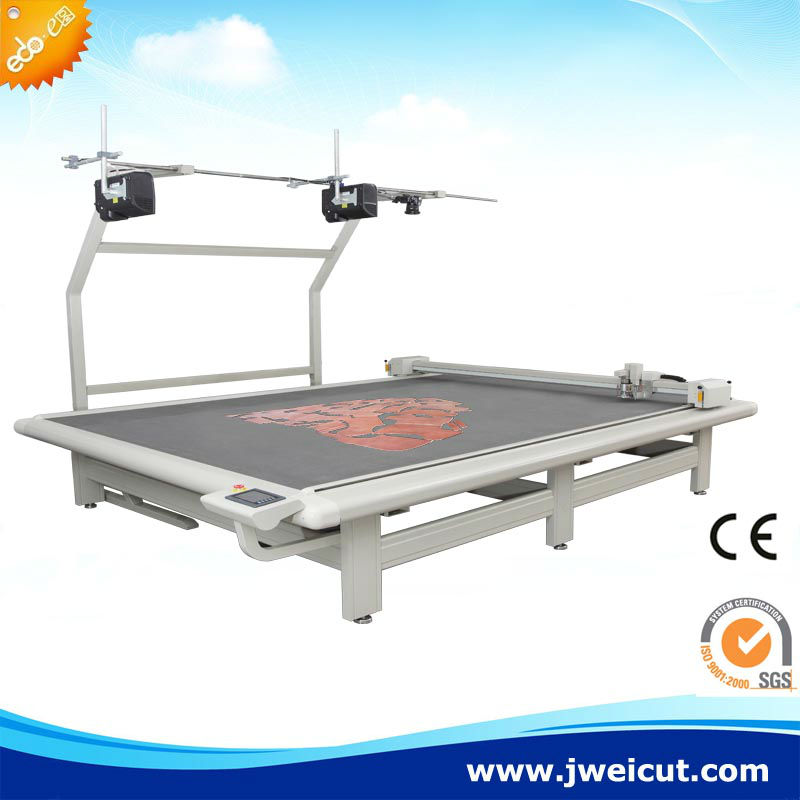

High precision Leather cut plotter

High precision Leather cut plotter, High precision, Easy operation, Correct positioning., Fast speed. - details see: https://www.machineto.com/high-precision-leather-cut-plotter-10265309
Condition:NewBrand Name:JingWeiModel Number:CLCertification:CE
1.Cutting speed:Up to 100mm/s2.Media Fixture Device:Vacuum suction3.Repeat Precision:Up to 0.1mm4.Buffer Memory:1G
High precision Leather cut plotter
contact supplier for High precision Leather cut plotter


Features:
1. The leather cutting machine's headpiece adapts the design of modular compounding and can be used in punching, scribing and cutting. It also hasthe character of scalability.
2. The configurations of the leather cutting machine's plotter are light locomotive and assembly line position. The function of circular supply helpssave time.
3. The leather cutting machine has an LCD touch screen panel that uses a user-friendly interface, making iteasy to learn and operate.
4. The leather cutting machine has a pneumatic pen that can connect with the pre-sample making platform and help facilitate the operation.

Please feel free to contact us for details!

Technical Parameters:

Model No.CL-1510CL-2510CL-3020
FeaturesPC controlled/Lasor Locating/Dual-projector, digital camera photography technology/simultaneous nesting & cutting tasks/excellent time saver
Cutting MediaKinds of leather, artificial leather, paper, cardboard, composite materials, etc.
Cutting Depthleather, skin, artificial leather, PU ≤4mm / composite cardboards ≤15mm
Knife ToolOsciallting Knife (1 set), Punching Knife (1.5mm/3mm per each set)/ Die cutting Knife (1 set)
Pen ToolSilver Refill Pen, Ball Pen. Oil Pen, Gel-ink Pen
Projector Resolution1024*768 Pixels
Oscillating Frequency10000-18000 RPM
Programmable Resolution0.025 / 0.01 / 0.1 available
InterfaceEthernet port & Serial port
Data transfer rate100MB/S
Command ModeHP-GL compatible format
Control PanelTouch screen
Transmission SystemDigital servo driver straight rail synchronous belt
Power SupplyMotor: AC 220V±10% 50HZ/10A Vacuum Pump: AC 380V±10% 50HZ/25A
Fuse6A,30A
Working Environment10 to 35 deg.C
Cutting Area1500mm*1000 mm2500mm*1000 mm3000mm*2000 mm


High precision Leather cut plotter
Packaging Detail:Wooden crates
Delivery Detail:Within 20 days
