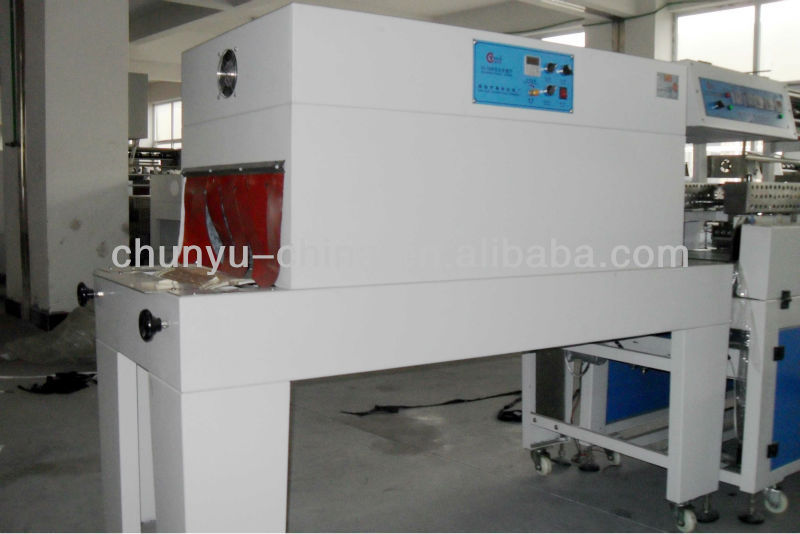

Heat shrink chamber
Price on request
Pricing is provided on request — use the quote form below.
- Port
- Ningbo/Shanghai
- Minimum Order Quantity
- 1 Set/Sets
- Supply Ability
- 30 Set/Sets per Month
- Payment Terms
- T/T,Western Union
Price on request
Pricing is provided on request — use the quote form below.
Something wrong with this listing? Report it
1. heat shrink chamber to shrink wrap foodstuff, medicine, drink, chemical, cosmetic etc.·2.Material is PO, POF film
| Type | Wrapping Machine | Condition | New |
|---|---|---|---|
| Application | publish | Packaging Type | Cartons |
| Packaging Material | Wood | Automatic Grade | Automatic |
| Driven Type | Electric | Power | 8.5KW |
| Place of Origin | Zhejiang China (Mainland) | Model Number | BS-560B |
| machine material | carbon steel spray treatment | Details | 1. heat shrink chamber to shrink wrap foodstuff, medicine, drink, chemical, cosmetic etc. · 2.Material is PO, POF film |
| Packaging Detail | export wooden case |
|---|---|
| Delivery Detail | 30 days after deposit received |
Description:
1. The heat shrink chamber to shrink wrap foodstuff, medicine, drink, chemical, cosmetic etc.
2. the max. speed is 30PCS/min.
3. It can finish sealing, shrinking automatically.
4. The bag length is controlled by photoelectric stepping motor; shrink speed is controlled by stepless.
5. All appliances are famous brands and make sure the machine run stably.
6. It can be used separately or in line with automatic cartoning machine and case filling machine.
7. CE certificate is available.
Main Technical Parameters
| Packing material | PO,POF triple extrusion environmental protection shrink film |
| Packing material size | 0.012~0.05*200~550 mm(thickness*width) |
| Packing material roll diameter | Max.250 mm |
| Power supply | 380V/50HZ or 220V/60HZ |
| Total power | 6.8KW |
| Air pressure | 0.5mpa |
| Capacity | 20~30PCS/min |
| Max. Packing size | 400*320*125mm,W+H<400mm(L*W*H) |
| Shrink speed | 0~10 m/min |
| Overall dimension | 1730*720*1410mm(L*W*H) |
| Machine weight | 200kgs |
| Machine main material | carbon steel spray treatment |
