glass washing machine

Glass Washing Machine, Ideal glass washing and drying effect, Suitable for different sizes glass, Glass Washing/Drying Machine - details see: https://www.machineto.com/glass-washing-machine-10331005

Machine Type:Glass Washing and Drying Machine	Place of Origin:China (Mainland)	Brand Name:sinomac	Model Number:FA-800/1200/1600
Certification:CE	name:glass washing machine

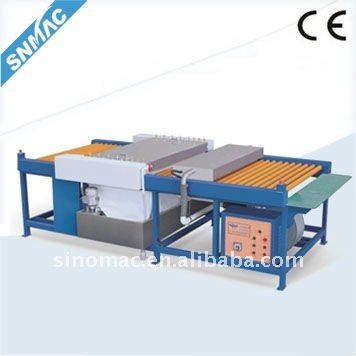

Glass Washing Machine

Glass washing machine is use for the flat glass washing and drying. It’s the necessary equipment for glass processing enterprise. Have complete section; include common glass, coated glass and LOW-E glass section. Washing and drying part can overall lifting, have digital display, also can according to customer requirement for decide.

The machine adopt horizontal structure, put the flat glass on the transfer roller, through entrance part---- washing part (two-stage washing) ---- water absorption part---- drying part (with 22kw drying machine) ---- exit part. Equip the Pneumatic lift sliding table can transfer speediness.
glass transfer speed can according to the process requirement, to achieve stepless speed adjustment. The machine though hand wheel and spring screw to adjust the different glass thickness.

1.Main technical Parameter:

Model	FA-800	FA-1200	FA-1600
Max. glass width	700mm	1100 mm	1500 mm
Min. glass dimension	70×70mm	100×100mm	250×250mm
glass thickness	3-10mm	2-19mm	2-19mm
speed	0.7-3.5mm/min	0.7-3.5mm/min	0.7-3.5mm/min
Power	8Kw	9Kw	10Kw
Over all size L×W×H	280012001020mm	330016001020mm	420020001020
Weight(kg)	800kg	900kg	1000 kg

II. Main collocation

Name	Main dispose specification
frame material	Body frame configuration all adopt high quality thick plus square tube material soldering, through high temperature anneal process, structure capability stable, can support heavy process loading.
	Transmit rubber cover roller transfer adopt chain revolve, simple and reliable, convenient maintain.
	Machine transmission are adopt vulcanized rubber cover roller structure (prohibit acidic liquid get in touch)
motor	choosing famous brand : Lian Zhou JIAN QIANG
water pump	choosing famous brand: SHAN QING
Step less derailleur	choosing internal famous brand; NAN HUA
transfer worm gear box	choosing famous brand ZHU JIANG
Bearing	choosing famous brand; Haerbin HRE
transformer, low pressure circuit breaker, contactor	choosing famous brand; JIUCHUAN and CHINT

Due to our company product improve constantly, the brand set which we mention above have alteration right with our notice. FOLGA GLASS MACHINRY CO., LTD has final right to interpret.
