electric trolley for electric chain hoist
Price on request
Pricing is provided on request — use the quote form below.
- Port
- Tianjin
- Minimum Order Quantity
- 50 Set/Sets
- Supply Ability
- 3000 Set/Sets per Month
- Payment Terms
- L/C,T/T
Price on request
Pricing is provided on request — use the quote form below.
Something wrong with this listing? Report it
1.Light aluminum alloy shell & high heat dissipation·2.tightness design·3.low noise&long service life·4.favorable price
| Condition | New | Place of Origin | Hebei China (Mainland) |
|---|---|---|---|
| Model Number | HG | Usage | Construction Hoist |
| Power Source | Electric | Sling Type | Chain |
| Maximum Lifting Weight | 10t | Maximum Lifting Height | according to your requirement |
| Lift Speed | 20m/min | voltage | 380v |
| Details | 1.Light aluminum alloy shell & high heat dissipation · 2.tightness design · 3.low noise&long service life · 4.favorable price |
| Packaging Detail | in high quality wooden case |
|---|---|
| Delivery Detail | according to your quantity |

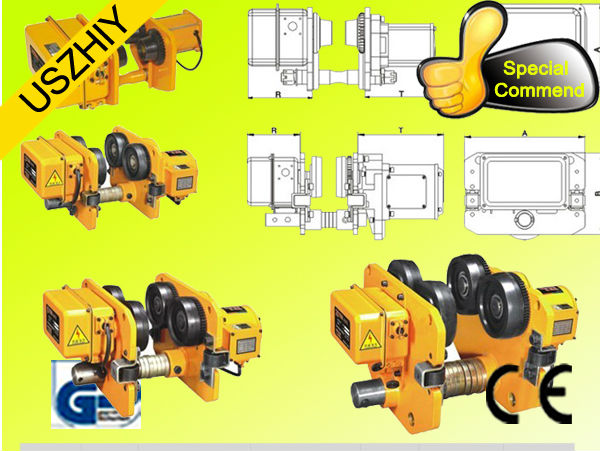

LIFTKING electric trolleys can be supplied in many different designs and are used to support and mount hoisting equipment for fixed or travelling applications. They are tested with overload and supplied with a test certificate and an operating instructions manual which contains a CE declaration of conformity.
| Type | Capacity(Ton) | Unit(mm) | Speed 50Hz(m/min) | Motor(Kw) | Minimum radius of turn | l-Beam(mm) | |||
| A | B | R | T | ||||||
| HG-0.5 | 0.5 | 196 | 248 | 142 | 159 | 12.2 | 0.12 | 0.8 | 52-153 |
| HG-01 | 1 | 315 | 212 | 142 | 231 | 11 or 21 | 0.4 | 0.8 | 52-153 |
| HG-02 | 2 | 325 | 220 | 142 | 231 | 11 or 21 | 0.4 | 0.8 | 82-178 |
| HG-03 | 3 | 340 | 250 | 142 | 231 | 11 or 21 | 0.75 | 1 | 100-178 |
| HG-05 | 5 | 400 | 291 | 142 | 231 | 11 or 21 | 0.75 | 1.8 | 100-178 |
| HG-7.5 | 7.5 | 400 | 291 | 142 | 231 | 11 or 21 | 0.75 | 1.8 | 100-178 |
| HG-10 | 10 | 500 | 370 | 142 | 231 | 11 or 21 | 0.75 | 2.5 | 150-220 |
