Drilling cum Milling Machine

Facebook Twitter LinkedIn Google Google+

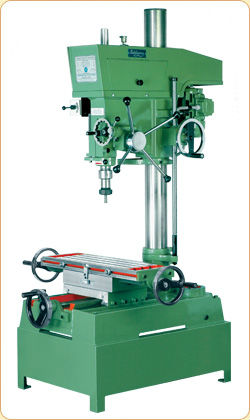

Drilling-Cum Milling Machine Model SSC - 6DMU

In : Drilling 40 mm Cast : Face Mill 100 mm Iron : End Mill 25 mm : Tapping 22 mm In mild Steel Drilling 35 mm Column Diameter 114 mm Swing 560 Vmm Working Surface 725 x 224 mm Longitudinal Travel Manual 340 mm Cross Travel 305 mm Vertical Travel 830 mm Quill Travel 170 mm Spindle Taper MT-4 Range of Spindle Speed 75 to 2070 RPM No. of Spindle Speed 8 Distance Spindle To Base 830 mm Overall Height with Guard 1780 mm Main Electrical Motor 1.5 HP V-belt Section B-58 Shipping Case ( L x W x H ) 1170 x 915 x 1570 mm

Related Product for Drilling cum Milling Machine

China radial drilling machine manufacturer

All our lathes and machines contain ISO9001,ISO14000 and CE certificates, and they are famous all over the world..

25mm Drilling / Radial Drilling Machine / RD3725

Radial Drilling Machine
1. Max drilling dia: 25mm
2. Spindle speeds range: 175, 425, 687, 960 r/min
3. CE norms.

40mm drill diameter radial drilling machine Z3040*11A

40mm drill diameter radial drilling machine Z3040*11A
1.ISO9001
2.CE standard
3.mechanical transmission & clamping

the light radial drilling machine

1.mechanical transmission
2.mechanical clamping
3.mechancial speed
4.automatic take-off and landing

High efficiency SM-100Y water well drilling machine

High efficiency SM-100Y water well drilling rig
1.High quality control
2.Fast Delivery
3.Good service

Z5140A convenient construction and low cost vertical drilling machine

Z5140A convenient construction and low cost vertical drilling machine
1.convenient to operate
2.excellent quality

T-540 CNC drilling and tapping center

T-540CNC tapping machine
1.Three axis travel:500*400*300mm
2.Table size:620*420mm
3.Spindle motor:5.5kw
4,position :+/-0.002

2013 NEW NCSD-1000 double main shafts deep hole drill

Central deep-hole processing of shaft parts

Upright Drilling Machine from Japan YOSHIDA YD2-55

1)Genuine Japanese Used Machine Tool
2)Condition:Used / Excellent
3)Type:Upright Drilling Machine
4)Spec:Drill~40mm Tap~M24

Drilling and milling machine

1. Woodworking drilling machinery;
2. Furniture vertical drilling machine;
3. Ranged boring machine;
4. Double-row drill.

CNC milling machine and drilling Machine TR543

CNC milling machine and drilling Machine TR543
High precision drilling machine
Low noise
High efficiency

drilling machine(sale promotion product)

This machine is mainly used in the wind mill area, can be used to machine holes on big gear ring simultaneously.
