construction hoist elevator

construction hoist elevator

Model SC200/200 Hoists Beijing,China(Mainland) Ref 10096682

Price on request

Pricing is provided on request — use the quote form below.

Port
XINGANG
Minimum Order Quantity
1 Set/Sets
Supply Ability
600 Set/Sets per Year
Payment Terms
L/C,T/T,Western Union

Something wrong with this listing? Report it

Request a Quote

Product: construction hoist elevator

Attachment optional · PDF, Word, Excel, image · max 10 MB
No file chosen
We usually reply within 12 hours.

Key features

SC200/200TD BUILDING HOIST·CAPACITY: 2* 2000KG·SPEED: 38 M/MIN·GALVANZIED MAST SECTION·CABIN: 3.2 *1.5*2.5M (L*W*H)

Specifications

Condition New Place of Origin Beijing China (Mainland)
Model Number SC200/200 Usage Construction Hoist
Power Source Electric Sling Type Cable
Maximum Lifting Weight 2*2000 KG Maximum Lifting Height 150 M
Lift Speed 36 M/MIN Certification ISO9001
Details SC200/200TD BUILDING HOIST · CAPACITY: 2* 2000KG · SPEED: 38 M/MIN · GALVANZIED MAST SECTION · CABIN: 3.2 *1.5*2.5M (L*W*H)

Packaging & delivery

Packaging Detailnude packing 40' FR Container.
Delivery Detail15 days

Product description

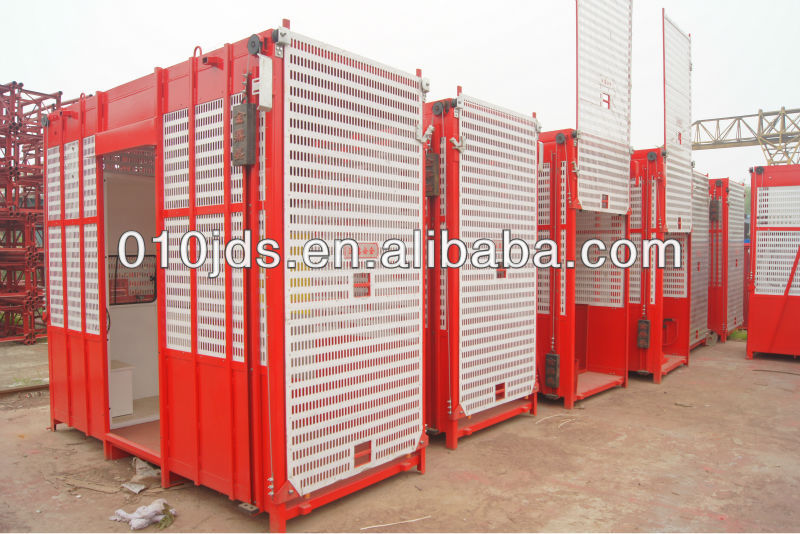

Construction hoist:

Item No.ItemSpecification of construction hoist
1Model NumberSC200/200A
2Place of OriginBeijing, China ( Mainland)
3Brand NameJDS
4Drive TypeRack & Pinion
5Elevator TypeGoods & passengers Elevators
6Lifting heightAccording to customers’ requirement
7Single-cage/ Double-cageAvailable
8Certificate of qualityISO9001:2000
9Model of safe guard machineSAJ4.0-1.2(SC)
10Main electrical systemSchneider( Germany)
11Reducing deviceTCW125A/B(Tianjin Aoya)
12MotorYZZ1-1.5/133( Jiangsu Yalian)
13UsageConstruction Material and passengers hoist
14Rated load2000 Kgs
15Rated lifting height28-38 m/min
16Max lifting height150 m
17Bulk of the hoist cage(length width height)3.2*1.5*2.7 m* m*m
18Inside height of the hoist cage2.4 M
19Mast section0.65 * 0.65* 1.508 m* m* m
20Starting current270 A
21Operating current70 A
22Power consumption13 * 3 KVA
23Power of electromotor11 *3 KW
24Quality of standard joint140 Kg
25Quality of whole machine20 T

FAQ

What model is this machine?
The model number is SC200/200.
Is it new or used?
Condition: New.
What is it used for?
Applications include Construction Hoist.
What power does it require?
Power requirement: Electric.
What certifications does it have?
Certification: ISO9001.
