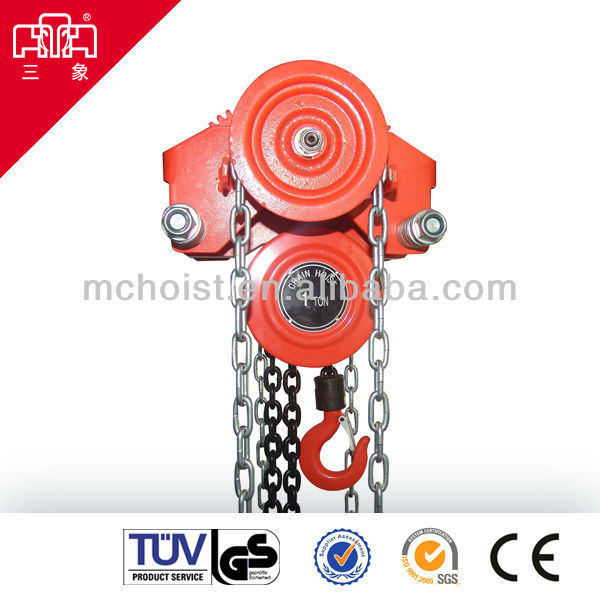

combination chain block and trolley
Price on request
Pricing is provided on request — use the quote form below.
- Port
- shanghai
- Minimum Order Quantity
- 20 Set/Sets
- Supply Ability
- 10000 Piece/Pieces per Month
- Payment Terms
- L/C,T/T,Western Union
Price on request
Pricing is provided on request — use the quote form below.
Something wrong with this listing? Report it
GCQZ combination chain block and trolley advantages:·1) capacity from 0.5T to 10T·2) min maintaince·3) fine appearance
| Condition | New | Place of Origin | Shanghai China (Mainland) |
|---|---|---|---|
| Model Number | GCQZ | Usage | Construction Hoist |
| Power Source | Hand Chain | Sling Type | Chain |
| Maximum Lifting Weight | 20ton | Maximum Lifting Height | 12m |
| load chain | G80 | net weight(3m chain) | 23kgs-147kgs |
| Details | GCQZ combination chain block and trolley advantages: · 1) capacity from 0.5T to 10T · 2) min maintaince · 3) fine appearance |
| Packaging Detail | wooden case |
|---|---|
| Delivery Detail | 50days |
| GCQZ combination chain block and trolley specifications | ||||||
| Model | GCQZ-0.5 | GCQZ-1 | GCQZ-2 | GCQZ-3 | GCQZ-5 | GCQZ-10 |
| Rated cap. | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Lift height | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 |
| Min curvature radius | 1 | 1 | 1.5 | 1.5 | 1.7 | 5 |
| No.of load chain falls | 1 | 1 | 2 | 2 | 2 | 4 |
| Net weight | 23 | 24 | 33 | 48 | 78 | 147 |
| Extra weight per meter of extralift | 1.7 | 1.7 | 2.5 | 3.7 | 5.3 | 9.7 |
| pack size | 35*33*30 | 35*33*30 | 37*33*36 | 41*40*35 | 51*47*42 | 64*56*55 |
| standard of load chain | 6*18 | 6*18 | 6*18 | 8*24 | 10*30 | 10*30 |
