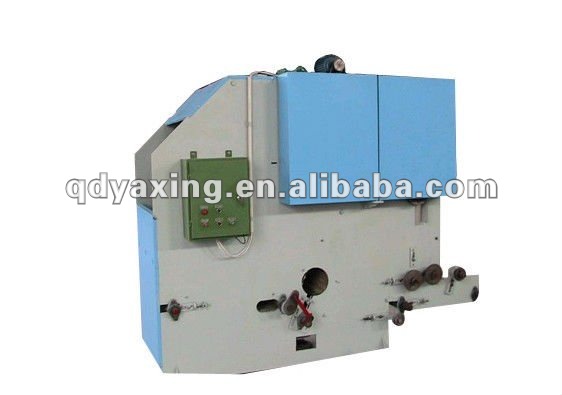

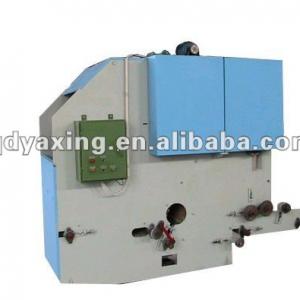

carding machine with chute feeder and autoleveling

Name: carding machine with chute feeder and autoleveling
SKU: 10279127

Model feeder Textile Raw Material Machines Shandong,China(Mainland) Ref 10279127

Price on request

Pricing is provided on request — use the quote form below.

Something wrong with this listing? Report it

Key features

High Quality·Low Power·Superior Quality·Reasonable Price·Quick Delivery

Place of Origin	Shandong China (Mainland)	Model Number	feeder
Details	High Quality · Low Power · Superior Quality · Reasonable Price · Quick Delivery

Packaging Detail	According To Customer Demand
Delivery Detail	According To Customer Demand

Specifications

carding machine with chute feeder and autoleveling is designed to meet the technical standards of 3C and CE.

carding machine with chute feeder and autoleveling

INTELLIGENT CONTROL

1. Advanced Control System Monitors.

2. The Working Status and Running Efficeency.

3. Safety Protections and Self-Diagnosis System

HIGH QUALITY & HIGH EFFICIENCY

1. Sophistcated Suction System Provide Better Opening and Cleaning.

2. Independent Transmission Motors Adjusted by Inverters For High Efficiency.

EASY POERATION & MAINTENANCE

1. User Friendly Graphical Interface

2. Easy access to control Parameters.

3. Smart Mechanical DesignMskes Maintenance An Easy Take

CONTROL SYSTEM

GRAPHICAL INTERFANCE PROVIDES EASY ACCESS TO ALL CONTROL PARAMETERS.

MULTI-INVERTER ADJUSTMENT SYSTEM PROVIDE ONLINE ADJUSTMENT FOR ULTIMATE PERFORMANCE.

FRONT STATIONARY FLAT REAR STATIONARY FALT ELECTRIC CONTROL BOX

AT\NTI-TURBULENCE AERODYNAMICS DESIGN REDUCES NAPS.

SUCTION POINTS:

Taker-in bottom suction

Taker-in air bleeding cover

Back web purifier

Rear flat trash suction

Flat strips

Front web purifier

Doffer triangular space

Cleaning roller

Cleaning cliler

Mode Item	FA206B
Material	100%Cotton & cotton chemical fibre	Chemical fibre
Fibre length	22-38mm	38-76mm
Deliver fixed weight	3.5-6.5g/m
Feed fixed weight	350-800g/m
Breadth	1020mm
Coiler can size	dia600900 or dia6001100mm
Cylinder dia.	dia1289mm
Cylinder speed	397r/min(frequency control)(50HZ)
Doffer dia	dia 706mm
Doffer speed	10-60rmp(frequency control)
Taker-in roller dia	dia 250mm
Taker-in roller speed	1047rpm(When Cylinder Motor 50HZ)
Stationary flats	Front 4 rear 7 stationary flats;Front 1 rear 1 web purifier
Flat speed	166;187;213;4mm/min
Delivery speed&capacity	20-220m/min,40-85kg/h
Autoleveller	Short,medium term
Total power	6.88kw
Suction	Taker-in,Cylinder&Doffer triangular space,flat cleaning roller,flat strips,web purifier,coiler and stripping clearer,etc.
Safety stop motion	1. Over thick layer feeding at feed roller 2. Sliver breakage between big and small calendar roller 3. Doffer running coherent with feed roller and coiler. 4. Taker-in and Cylinder speed is abnormal. 5. Doffer speed is abnormal. 6. Insufficient hopper feeding 7. Insufficient wind pressure for dust suction 8. Metal detected
Flat quantity	Revolning flats 82pcs/working flats 30pcs
Net weight	About 5500kg
