Cap Wearing Machine for Vacuum Blood Collection tube

Cap Wearing Machine for Vacuum Blood Collection tube, 1.Simple and effective conveying and easy maintenance., 2.Simple operation - details see: https://www.machineto.com/cap-wearing-machine-for-vacuum-blood-collection-tube-10055014
Type:Capping MachineCondition:NewApplication:Medical,Machinery & HardwareDriven Type:Electric
Automatic Grade:AutomaticVoltage:380v/50HzPower:1.1w,1.1KW, AC380V, 50-60HzPackaging Type:Bottles
Packaging Material:GlassPlace of Origin:Jiangsu China (Mainland)Brand Name:suxinModel Number:Cap Wearing Machine
Dimension(L*W*H):1200mmx1000mmx170mmWeight:About 650kgCertification:GMP/CEAfter-sales Service Provided:Engineers available to service machinery overseas
certificated:GMP/CEoutput:6000-8000pcs/hAvailable tube size:height: 75mm-100mmAvailable cap size:Outer diameter: 16 ±0.05;Height: 19.5mm
Compressed air consumption:max 0.4m3/minAir source pressure:0.5Mpa≤P≤0.8MpaOuter dimension:1200mmx1000mmx170mm
Cap Wearing Machine for Vacuum Blood Collection tube
contact supplier for Cap Wearing Machine for Vacuum Blood Collection tube

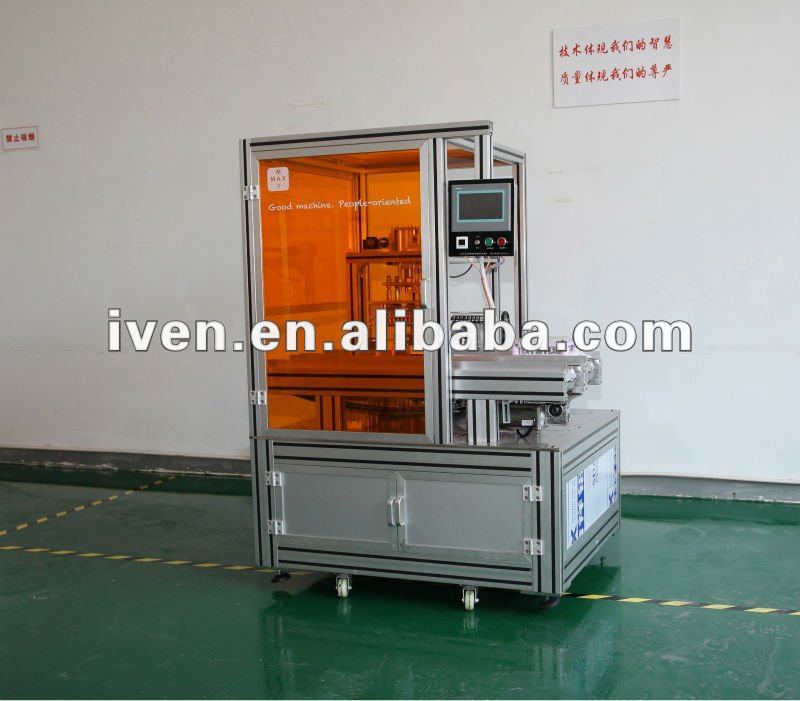

Cap Wearing Machine

Used for cap and rubber stopper combining online and wearing it on the tube.

Our Advantages

Improve the traditional cap wearing way, realize the composing on line

The cap and rubber stopper can be combined online at the same time, eliminate the cap and the stopper combining processes, it makes the production process more simple and efficient .

  1. Simple and effective conveying and easy maintenance.
  2. Simple operation, high qualified rate.

Main parameters and configuration

1) Capacity:6000-8000pcs/h

2) Available tube size:Ø12- Ø13,height: 75mm-100mm

3) Available cap size:Outer diameter: Ø16 ±0.05;Height: 19.5mm

4) Finish 100pcs cap wearing in one time, oscillator cap feeding;

5) Compressed air consumption:max 0.4m3/min, Air source pressure:0.5Mpa≤P≤0.8Mpa

6) Mitsubishi PLC, Siemens touch screen, Schneider and other electrical components, Parke, ARK, AirTAC pneumatic components etc.

7) Power:1.1KW, AC380V, 50-60Hz

8) Outer dimension:1200mm×1000mm×170mm;(without the oscillator)

9) Weight:About 650kg


Cap Wearing Machine for Vacuum Blood Collection tube
Packaging Detail:Standard export package for glass bottles. Cap Wearing Machine
Delivery Detail:5days after your payment
