automatic oil hydraulic lasting machine

automatic oil hydraulic lasting machine, 1 best operation shoes lasting machine, 2 automatic oil hydraulic toe lasting machine - details see: https://www.machineto.com/automatic-oil-hydraulic-lasting-machine-10265928
Place of Origin:Jiangsu China (Mainland)Brand Name:luoshiModel Number:LS-737MAHydraulic oil quantity:110liters
automatic oil hydraulic lasting machine
contact supplier for automatic oil hydraulic lasting machine

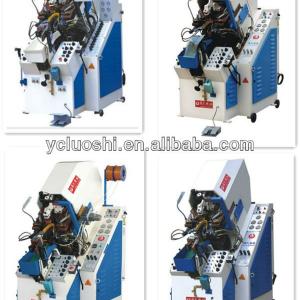

LS-737MA oil hydraulic automatic toe lasting machine

Technical Data:

Power

2 Hp

Electrothermal power

1.5 Kw

Working pressure

45 kgf/cm 2

Output

1500-1800 pair/8hr.

Weight

1140 kg

Mechanical Dimension

1710 × 950 × 1950 mm

Packing Dimension

1760 × 1000 × 2160 mm

Hydraulic oil quantity

110 liters

Features:
  1. Full-feature tensioner and wiper with special trace can ensure that the shoe surface presses tightly against the last after bonding without any angles, therefore adding to beauty and enhancing the bonding quality.
  2. The toe cap pressing mechanism adopts adjustable two-section type pressure with the design of master and slave cylinders, which enables the attaching during the lasting process of shoes and wipers and the final pressing of pressing head for one time pressing can make the lasting process be smooth. When locating, in comparison with soft leather materials, the occurrence of lengthening lasting distance and pull-down of front stop is not so easy to happen.
  3. Each group of claws has independent automatic pull-down function. According to the tightness of shoe surface, the required claws can be selected for automatic pull-down action and the pull-down depth can be adjusted if necessary.
  4. The nine-claw independent design can be separately adapted to the lasting of toe cap of any form. The principle of automatic balancing and automatic descending when the wiper moves forward is also the feature to increase product quality and enhance output.
  5. The internal and external supporting tables have the functions of two-section rising for coordinating with heel seat supporting operation to prevent the occurrence of sliding of shoe last.
  6. No tools is required during the adjustment of lasting action. It is provided with scale and location rule indication.
  7. The selector switches for various actions are necessary for operations, and can be rapidly switched.
  8. The accessorial wiper is used to coordinate the nine-claw toe cap to make the lasting length of toe cap be lengthened to the front middle turning corner. After the lasting, the toe cap and shoe surface can be more tightly attached with the shoe last.

automatic oil hydraulic lasting machine
Packaging Detail:standard wooden case for each set of machine or meet clients requirements
Delivery Detail:10 days after payment
