1.Material: SS 3042.Model :QGF-1203.Capacity:120 B/H
| Place of Origin | Zhejiang China (Mainland) | Model Number | QGF-120 |
|---|---|---|---|
| 1.Material | SS 3042.Model :QGF-1203.Capacity:120 B/H |
| Packaging Detail | wooden case |
|---|---|
| Delivery Detail | 15 days after buyer comfirmation |

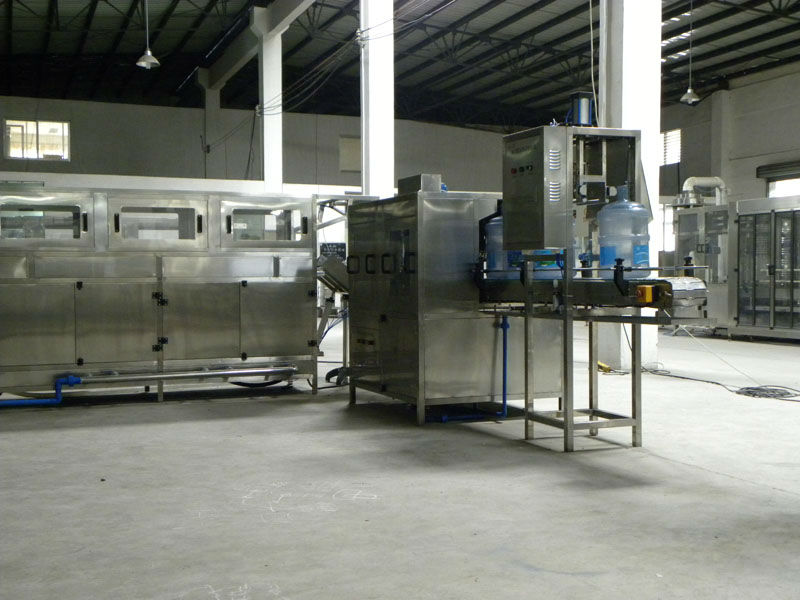

GQF-120 barreled production line is composed of bottle washing machine ,bottle filling machine and sealing machine into one body especially for the production of drinking water of 3 and 5gallons,It is an idea filling line to produce mineral water,distilled water and purified water ,The whole line is made of superior stainless steel,antocorrosive and easy to clean,Sidemen's electric components,The world famous product of Air TAC and Omron are introduced in the air circuit systems,The machine is compactly conformed to small occupation of land and high efficiency and reliable and stable quality and high antomation,Only two operators are needed for a line,which is wholly antomatic barreled equipment with motor,electrin unit and air three in one,
Technical ParameterSof the Barreled Water Filling Machine (Water Filling Machine):
| Model | QGF-120 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | |
| Filling heads | 1 | 2 | 3 | 4 | 6 | 8 | |
| Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | |
| Barrel size | dia270*490 | dia270*490 | dia270*490 | dia270*490 | dia270*490 | dia270*490 | |
| Capacity | 120 | 300 | 450 | 600 | 900 | 1200 | |
| Gas pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | |
| Gas consumption | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | |
| Moto power | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | |
| Rated voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
